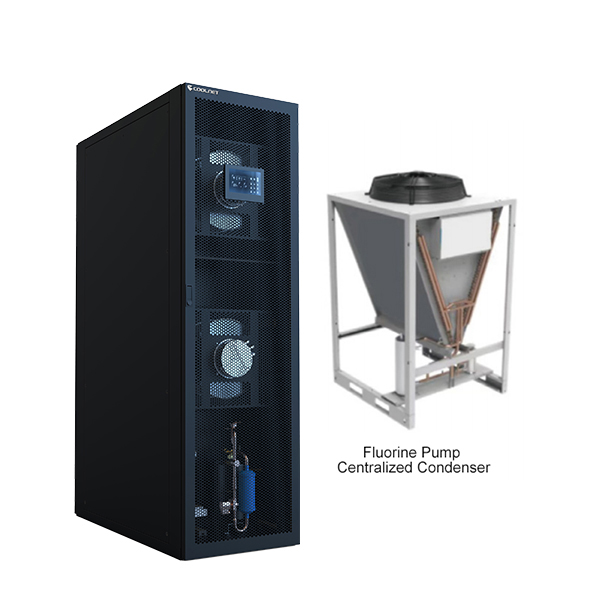

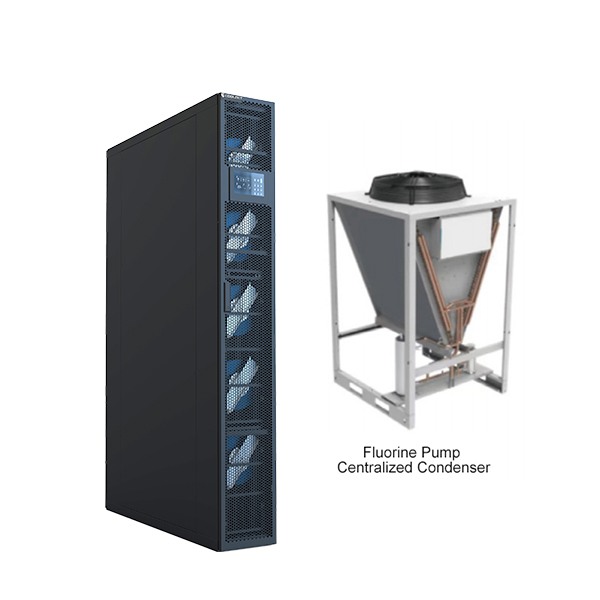

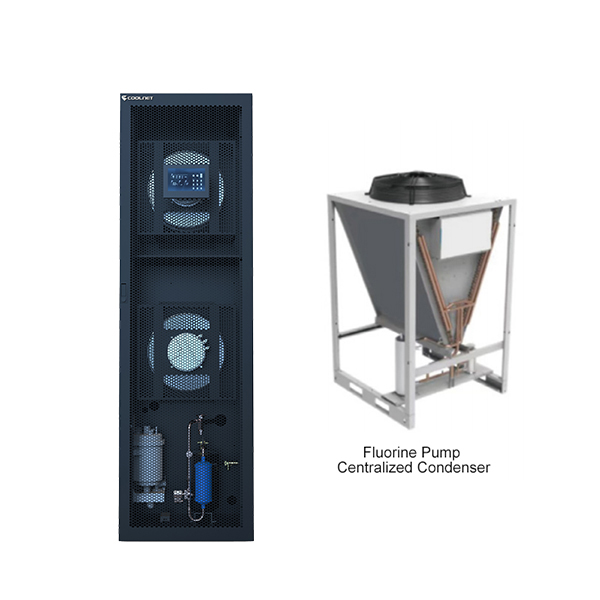

Coolnet CMF Series fluorine pump PAC is a high-efficiency and energy-saving precision air conditioner. it provides precise temperature and humidity control for large and medium-size data rooms. Dual cycle system makes full use of outdoor natural cold sources and uses a set of refrigeration systems to achieve three refrigeration modes, It adopts high efficiency compressor and EC centrifugal fan to meet the requirements of 24*7 all weather continuous operation.

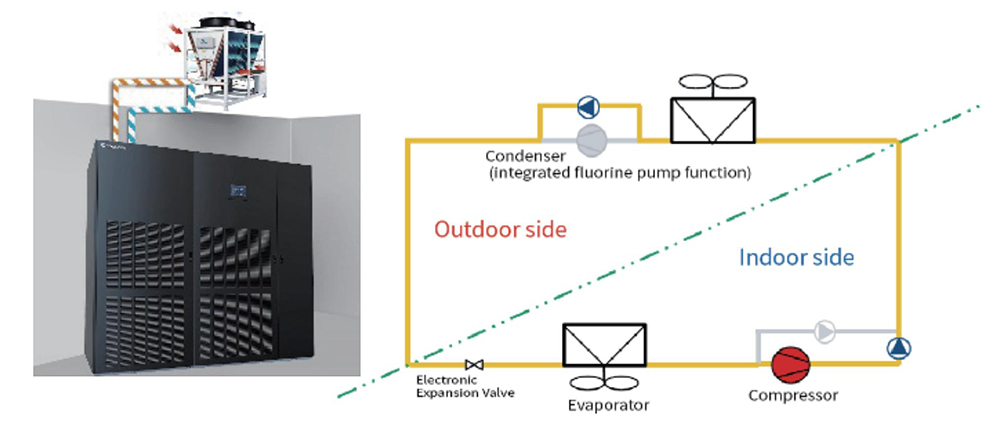

The dual-loop system of the fluorine pump makes full use of the natural cold source, automatically adjusts the operation mode according to the change of the outdoor temperature, and the annual energy efficiency (AEER) can reach 10.0.
Adopt full EC inverter system design, equipped with fully enclosed DC inverter compressor, no high and low pressure valves, small starting current, anti-liquid shock, long life.
Controller
7-inch color touch screen high-precision control, a variety of group control modes, to achieve 32 units group control, precise and reliable contro.
PTC Heater
PTC electric heating, aluminum alloy fins heat up quickly, can realize automatic temperature adjustment and even heat generation.
EC Fan
Energy-saving EC centrifugal fan, large air volume, high static pressure, smooth operation, low noise
Scroll Compressor
Stable design realizes high reliability and durability for easy repair and maintenance. Low noise, low vibration and high energy efficiency throughout the entire operating period.
Humidify System
Electrode humidification volume, high efficiency and with automatic flushing function.
Refrigerant Pumps
Using a special refrigerant pump, strong adaptive ability ,smoth gas and liquid transportation, with low NPSH and good sealing performance, ensuring reliable operation at low temperatures.

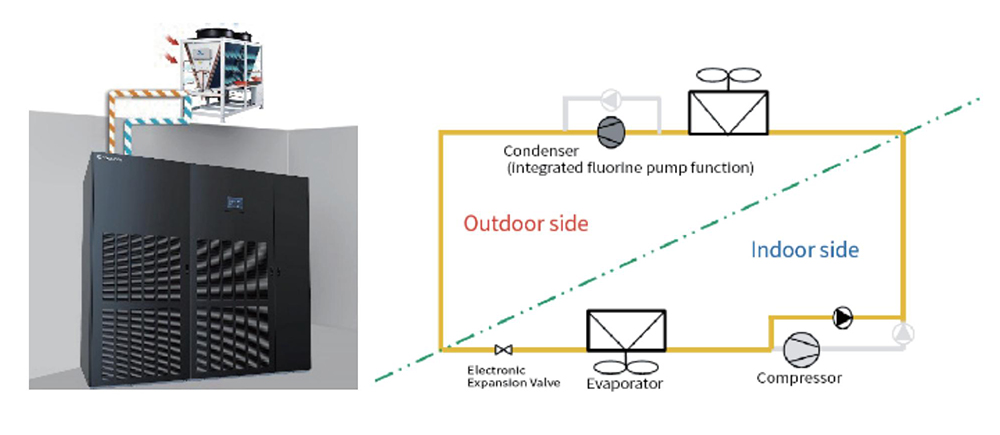

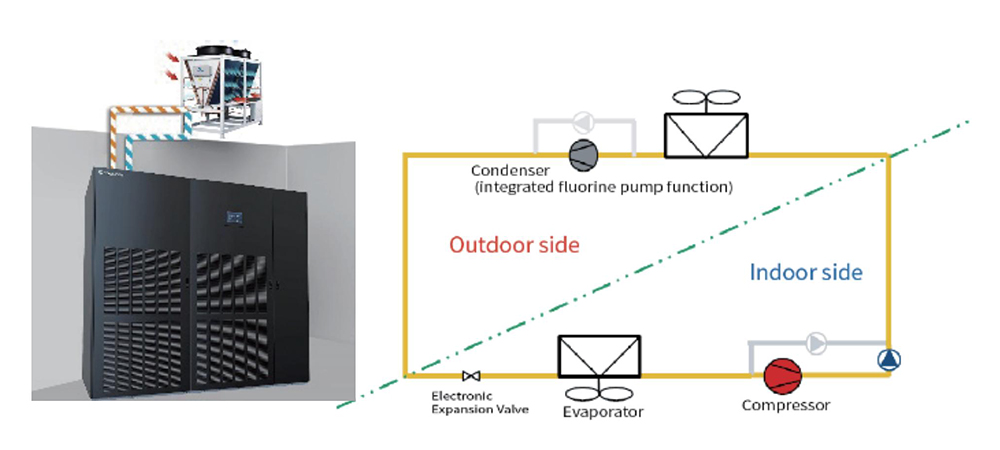

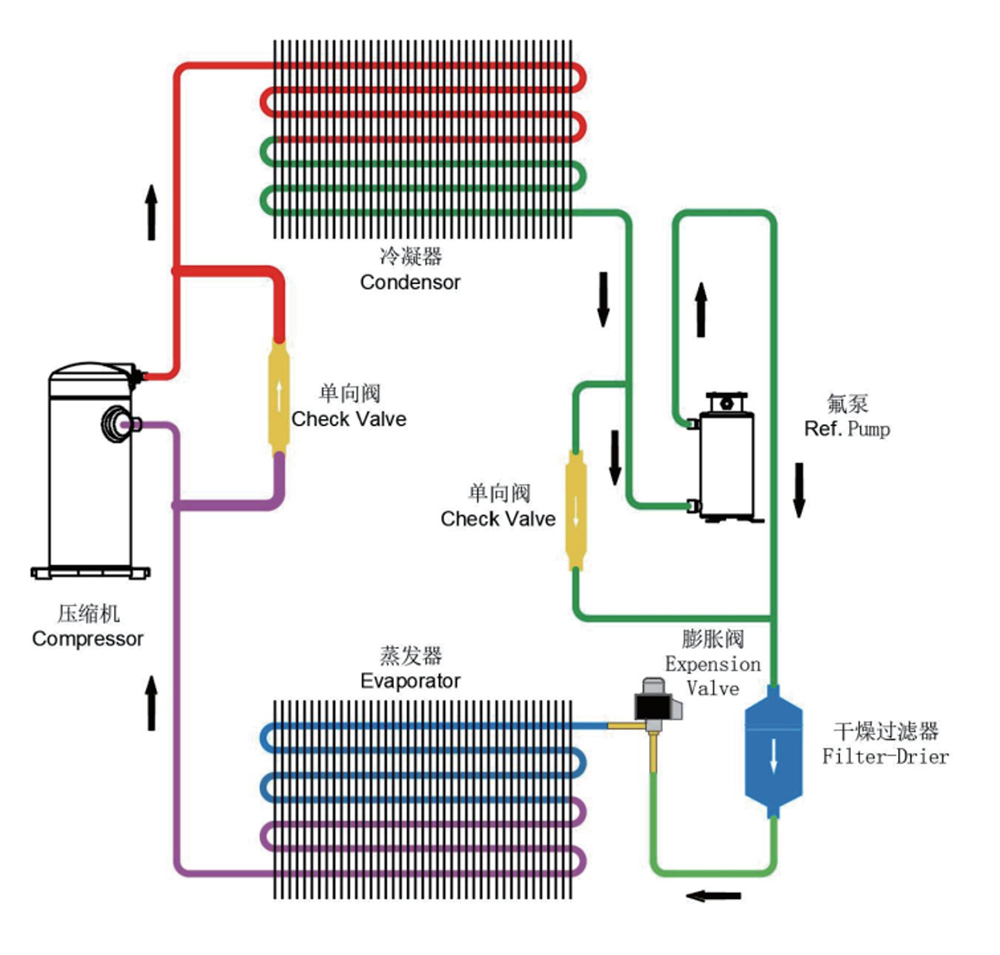

Three Operating Modes, Automatic Adjustment, Suitable For Various Working Conditions and Environments；When there is a certain temperature difference between indoor and outdoor, fluorine pump technology is used to reduce the power of the compressor or even stop the compressor from running, effectively reducing the energy consumption of the air conditioner in order to achieve the purpose of energy saving.\
Natural Cooling Mode of Fluorine Pump
Operating Mode Description：The fluorine pump component operates independently of the pump, The gaseous refrigerant completely condenses into liquid in the natural cooling coil, significantly reducing the energy consumption of the unit on of the unit is significantly reduced.
Outdoor Ambient Temperature ：≤5℃
Applicable Season : Winter
Mixed Refrigeration Mode
Operating Mode Description：The fluorine pump component and compressor operate together, resulting in a significant improvement in overall energy efficiency.
Outdoor Ambient Temperature ：＞5℃、≤15℃
Applicable Season : Spring & Autumn
Compressor Refrigeration Mode
Activate the compressor mode to meet the normalcooling requirements of the computer room.
Outdoor Ambient Temperature ：＞15℃
Applicable Season : Summer

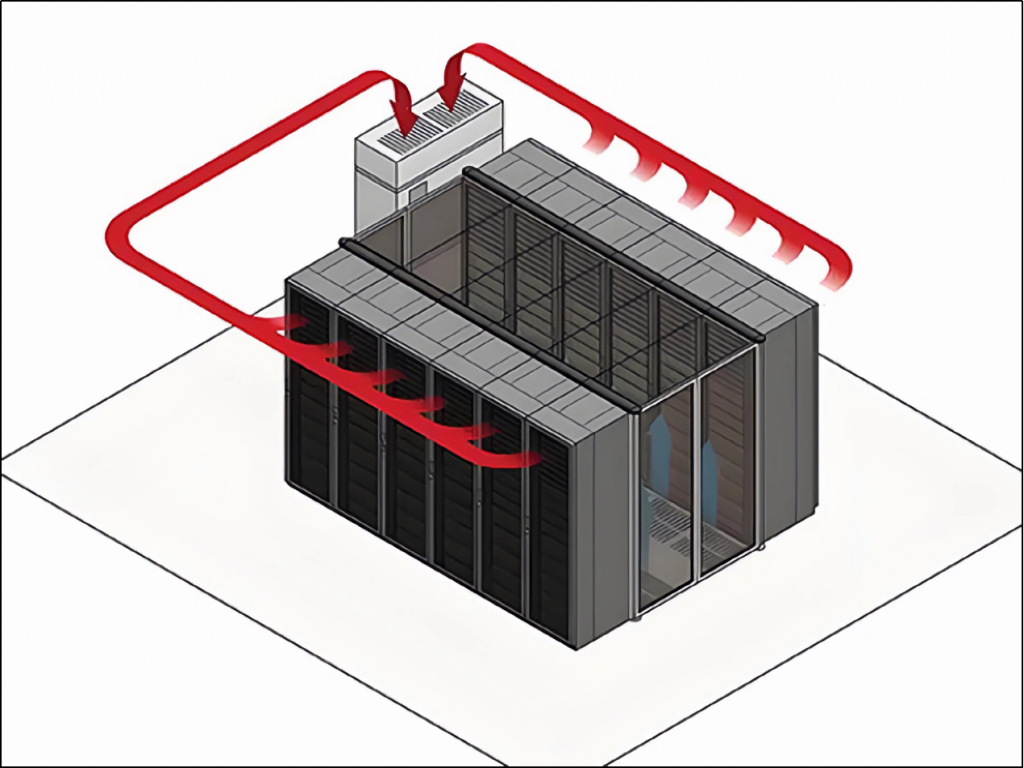

Data centers and server rooms Data centers have extremely high requirements for temperature and humidity control. Precision air conditioners can ensure that equipment remains in a stable working environment to prevent equipment failure or data loss caused by overheating or over humidity. Laboratories and scientific research institutions In many scientific research fields, especially in the fields of bio-medicine and chemical analysis, the temperature and humidity in the laboratory must be strictly controlled to ensure the accuracy and repeatability of experimental data. Precision air conditioners can accurately control these environmental factors. Electronic manufacturing industry Precision air conditioners are also important in the production line of electronic products. Especially during the production and testing process, precise temperature and humidity control can prevent static electricity, corrosion and other effects on sensitive electronic components. Medical industry In places such as hospitals, clinics and drug warehouses, especially when storing vaccines, drugs and other items that require constant temperature and humidity, precision air conditioners can ensure the stability of their storage environment and ensure the quality of drugs. Optical and aerospace fields Precision air conditioners are also commonly used in the production of optical instruments or aerospace fields that have extremely strict environmental requirements. The equipment in these industries is extremely sensitive to changes in temperature and humidity. Precision air conditioners can provide a stable environment to ensure the performance and reliability of the equipment. Production and maintenance of precision instruments When producing and repairing precision instruments, it is necessary to keep the environment stable to avoid environmental factors affecting the accuracy of the instruments. Precision air conditioners can provide precise temperature and humidity control.
Coolnet has a crucial mission in the digital age. In innovating data centers, we explore new concepts and use advanced tech. The modular design meets various needs, and cooling/smart systems ensure efficiency. For connections, we optimize networks for fast data transfer. Leading the era, we help all clients, startups or established, thrive via emerging tech.
Support on emand expansion
Provide 24*7 online service
Offer reliable technical support
