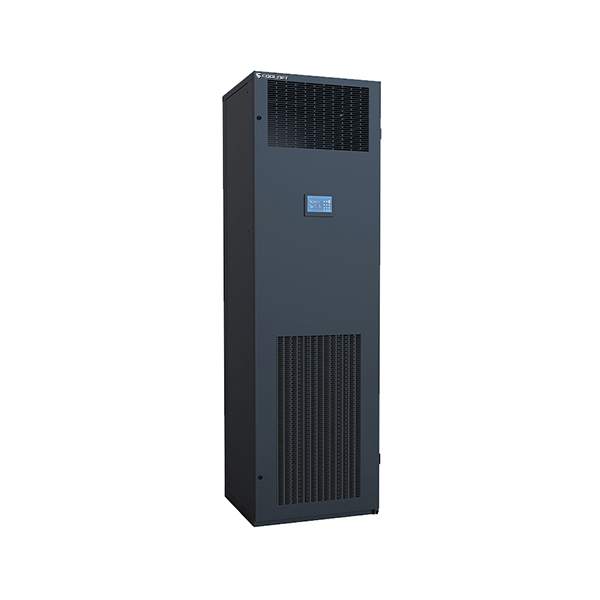

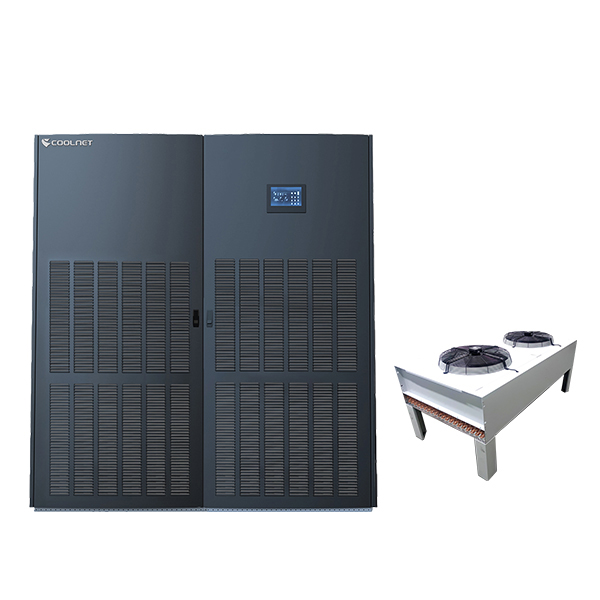

CyberMaster HT Series PAC For High Temperature Climate

Cooling Perfected, Reliability Guaranteed.

• Low Operating & Maintenance Costs – leading brand components, long operation life.
• High-Efficiency Backward Curved Centrifugal Fan-high airflow, long-distance delivery, stable environment.
• Wide Voltage Adaptability – Phase sequence fault tolerance, auto-restart & delayed start.

Efficiency Thermal Regulation

• Dual Energy Efficiency Optimization: EC fan + inverter compressor reduce annual energy consumption by 25%.
• Load Adaptive Control: Dynamically matches cooling demand in real-time.
• High-Efficiency Heat Exchanger: improves heat transfer efficiency by 25%.

.

Intelligent Precision Control system

• 7” Color Touchscreen – Multi-level password access, self-diagnostic system,Russian/English/Chinese interface.

• Group Control (Up to 32 Units) – Energy efficiency management, scheduled rotation, auto-failover.

• Comprehensive Monitoring & Protection- Real-time operating status of all components, 500 historical alarm records.
• Standard RS485 communication interface,-optional Ethernet port, supporting TCP/IP, SNMP, and other protocols.

Modular Structure Design

Adopting modular design, it is suitable for integral temperature control solution in data centre, base station, battery room, equipment room and other places.

• Flexible Configuration & Adjustment
  Modular design enables customized setup for diverse application scenarios, ensuring optimal adaptation to various environmental conditions and usage requirements.

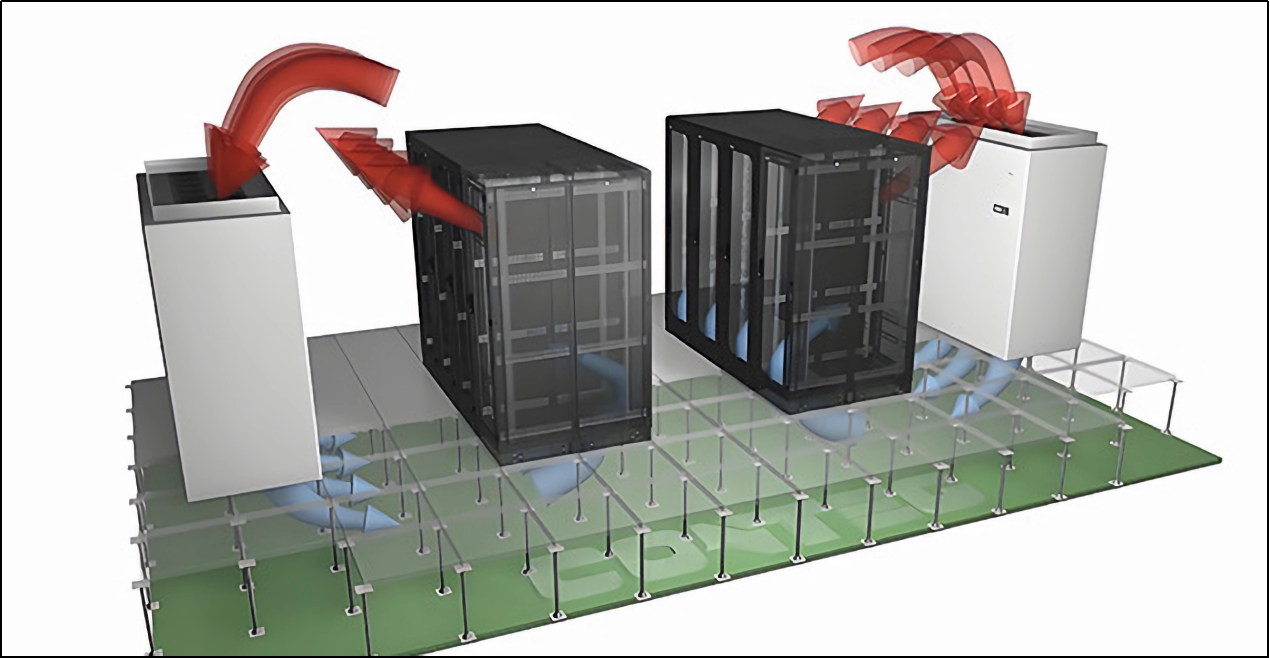

• Optimized Airflow Distribution
  Independent module installation ensures superior airflow organization and flexible layout options, enhancing system efficiency and comfort.
• Reduced Installation Costs
  Compact module design allows easy passage through standard doorways, significantly lowering transportation and installation complexity/costs.

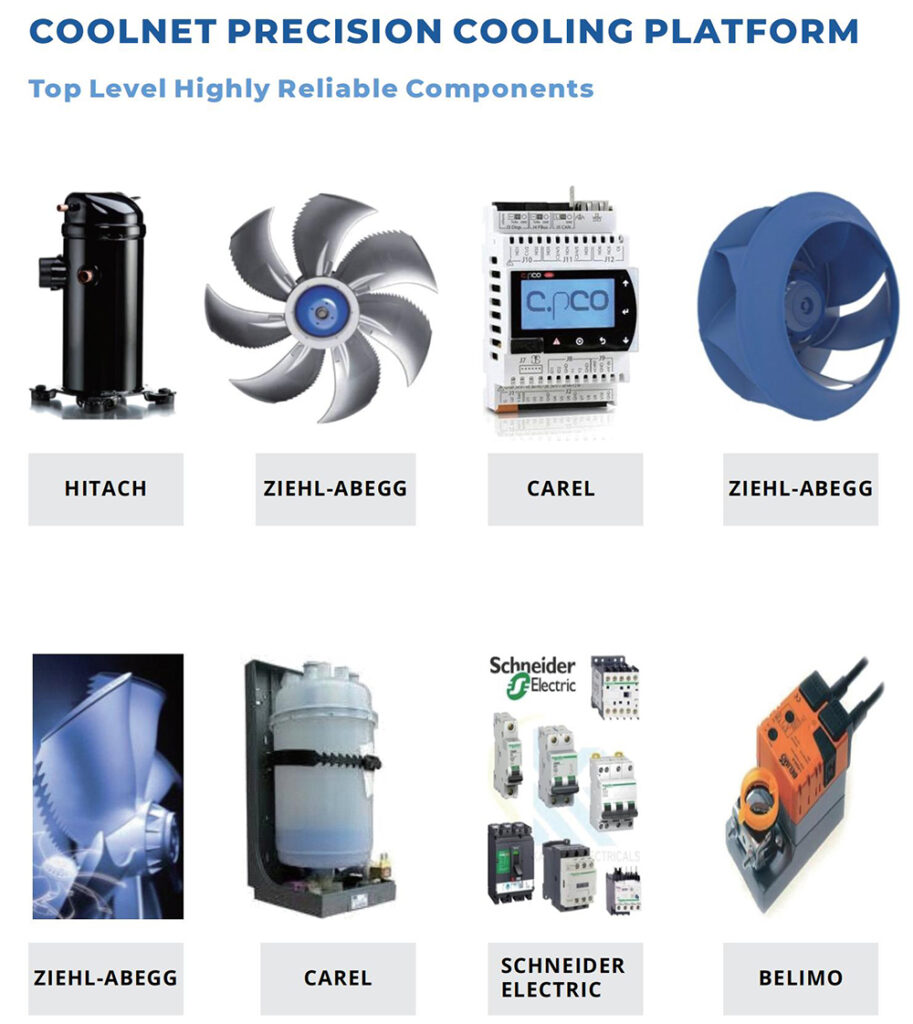

Key Components

EC Fans	Compressor	Electronic Expansion Valve	Humidifier
The backward centrifugal EC fan with high efficiency and reliability is adopted, featuring large air volume, stable operation, long air supply distance, and wide static pressure range adjustmen.	Copeland flexible scroll compressor with high efficiency, can dynamically output cooling capacity according to demand, energy saving, and high efficiency.	Expansion valve adopts advanced thermal expansion valves with strong reliability and stability and can precisely control the supply of refrigerant.	An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all controlled by computer.

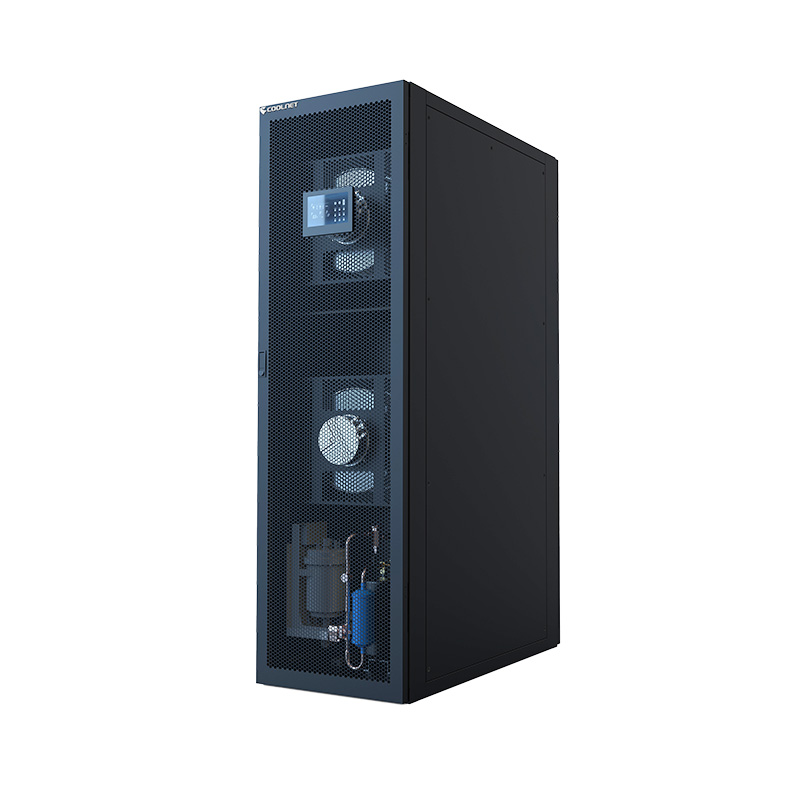

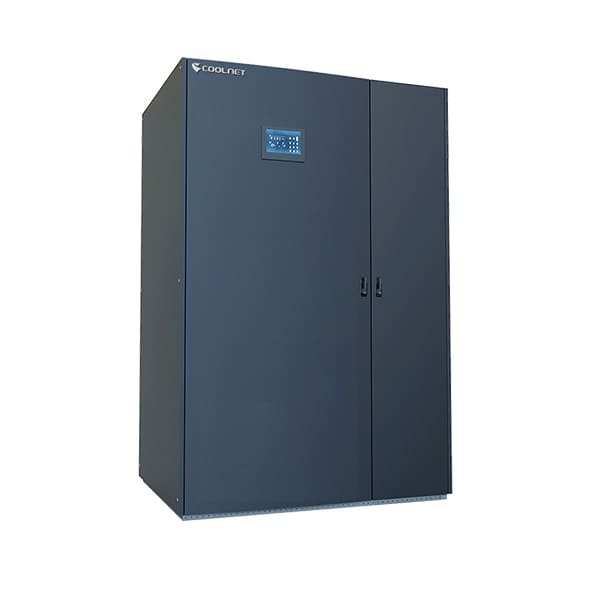

 Precision Air Conditioner For High Temperature Climate
