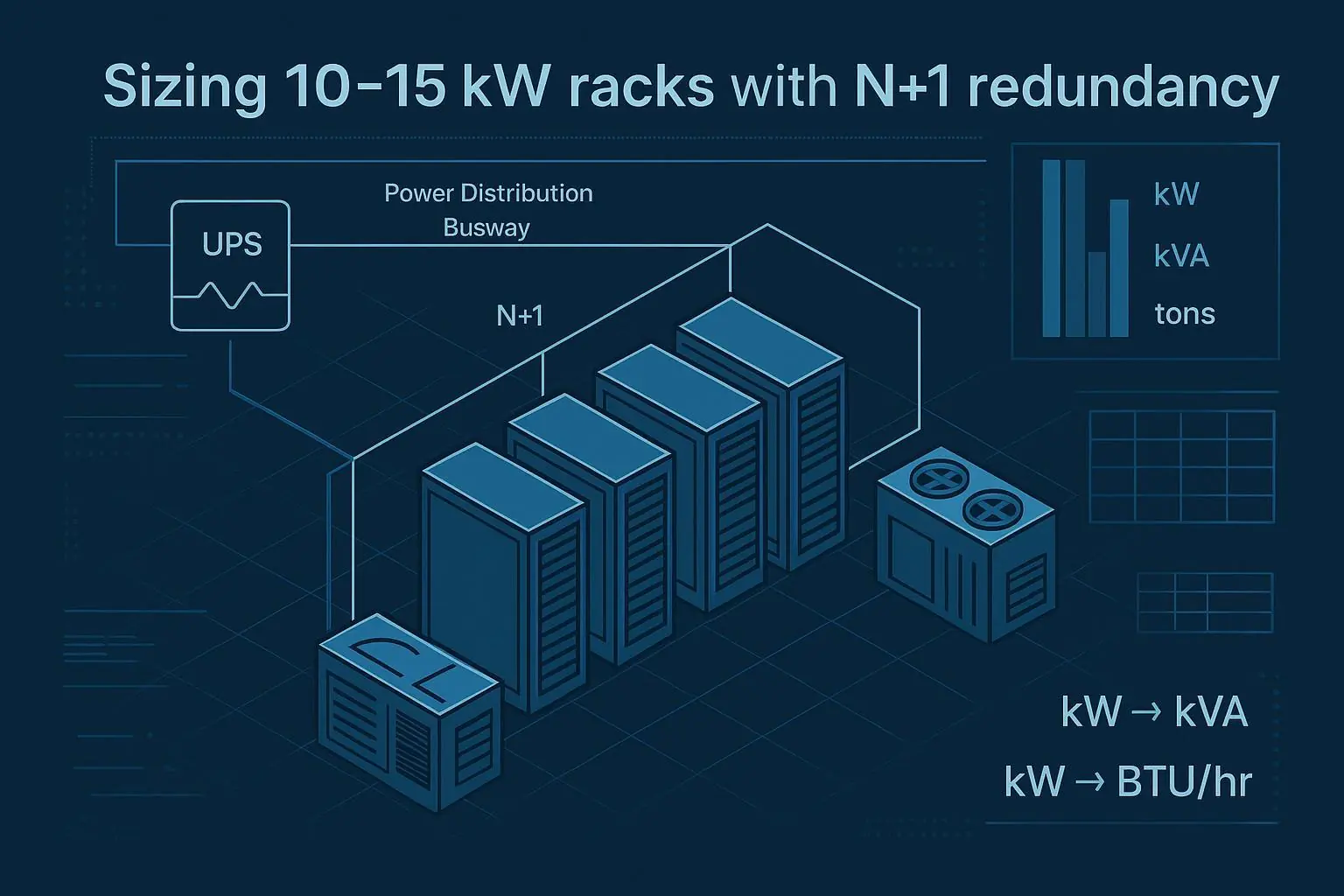

Sizing 10–15 kW racks with N+1 redundancy: a step-by-step method

If you’re planning a dedicated IT room (10–40 racks) at 10–15 kW per rack, the two fastest ways to get into trouble are (1) “adding margin everywhere” until costs explode, and (2) assuming N+1 is a single number you can apply once and move on.

This guide gives you a vendor-neutral workflow to size UPS (static), power distribution, and cooling capacity—including the checks that prove your N+1 design still holds during a failure or maintenance event.

Key Takeaway: Treat N+1 as an architecture test, not a percentage. The question is: Can the system carry the design load with one component unavailable?

What this guide covers and what it doesn’t

Included

• Room-level sizing workflow for:

  • UPS (static)

  • Distribution (PDU/RPP/busway)

  • Cooling capacity (CRAC/CRAH/in-row/rear-door/liquid loop — capacity method is the same; implementation differs)

• Diversity factors vs safety margins vs redundancy

• Failure + maintenance scenarios

• A vendor-neutral example BOM

• An Excel-friendly worksheet you can copy/paste

Not included (by design)

• Service entrance, utility transformer, generator plant sizing

• Detailed CFD or airflow modeling

• Final equipment selection or vendor comparison

Prerequisites: gather inputs before you calculate

You’ll move faster (and avoid double counting) if you collect inputs in four buckets.

A) Rack and load inputs

• Planned rack count (today) and target rack count (growth)

• Target range: 10–15 kW/rack

• Any “special racks” (GPU/HPC) expected to exceed 15 kW

• Whether workloads are likely to be correlated (many racks peaking together)

B) Electrical sizing assumptions

• UPS topology: static

• Target runtime on battery (minutes)

• Power factor (PF): measured or assumed

• Growth horizon: how many months/years you want the sizing to cover

C) Cooling sizing assumptions

• Candidate cooling approach (room-level CRAC/CRAH, in-row, rear-door, liquid loop)

• Containment plan (none / hot aisle / cold aisle)

• Constraints that affect effectiveness (ceiling height, return path, door grilles, raised floor/no raised floor)

D) Availability expectations (define this upfront)

• What N+1 needs to protect against:

  • 1 component failure

  • 1 component out for maintenance

  • (optionally) utility outage duration vs generator start

Step 1 — Convert “kW per rack” into a defensible IT load model

Input: rack count, kW/rack target, growth, utilization expectations.

Action

1. Define three scenarios you can use in design review:

   • Low (early occupancy / commissioning)

   • Typical peak (expected busiest hours)

   • Design peak (worst credible peak you’re designing for)

2. Decide whether you will apply a diversity factor—and how you’ll justify it.

Output: total IT load (kW) for low / typical / design.

Done when: you can explain in one sentence why “design peak” is plausible for your workload mix.

Diversity factor vs safety margin (use carefully)

A diversity factor can be reasonable when you have measured utilization or clearly mixed workloads. It can be risky when loads are correlated (e.g., synchronized batch jobs, homogeneous racks, some AI-style burst behavior). A safety margin is different: it’s explicit headroom you carry even after you’ve chosen whether to apply diversity.

⚠️ Warning: Don’t use diversity to “make the design fit.” If future rack mix becomes more correlated, diversity disappears—and your headroom disappears with it.

Step 2 — Translate IT kW into UPS output sizing (kW and kVA)

This is the core UPS sizing (kVA power factor) step. UPS discussions often go off the rails because people size to kW but procure in kVA—or vice versa—without documenting PF.

Input: design IT kW, power factor (PF), intended headroom margin.

Action

1. Convert real power to apparent power when needed.

   • From Fuji Electric’s UPS sizing calculation, the relationship is: watts = VA × power factor (so kVA ≈ kW / PF).

   • Reference: Fuji Electric’s UPS sizing calculation (watts = VA × power factor)

2. Add a controlled engineering margin (separate from redundancy). Typical margin buckets include:

   • load uncertainty

   • growth horizon

   • battery aging / replacement interval

3. Select a preliminary UPS “N capacity” that covers design load + margin (without adding redundancy yet).

Output: UPS N capacity in kW and kVA, with PF documented.

Done when: your UPS requirement is written as: “Need ≥ X kW and ≥ Y kVA at PF = Z, for design peak + margin.”

Pro Tip: Treat “margin” and “redundancy” as separate lines in your spreadsheet. It prevents accidental double counting.

Step 3 — Apply N+1 to the UPS architecture (and test failure + maintenance)

Input: UPS N capacity, preferred module/block size, maintenance philosophy.

Action

1. Determine N: the minimum number of UPS modules/blocks needed to meet your UPS N capacity.

2. Add +1 additional module/block.

3. Validate that capacity still holds under three states:

   • Normal (all modules available)

   • One module failed

   • One module in maintenance

Output: a pass/fail table showing “available capacity” vs “required capacity” for each state.

Done when: you can show—on one page—that design peak + margin is carried with one module unavailable.

Common UPS N+1 pitfall

If you only model the UPS modules, you can miss constraints like bypass rating, breaker coordination, or a non-redundant output distribution path.

For a practical checklist of UPS sizing inputs (load, growth, runtime), see Eaton’s UPS sizing overview.

Step 4 — Size downstream distribution (PDU/RPP/busway) so N+1 isn’t “paper only”

It’s possible to have N+1 UPS capacity and still have a single distribution point that takes you down.

Input: UPS output (kW/kVA), distribution topology, rack feed plan.

Action

1. Decide your topology:

   • radial distribution via PDU/RPP, or

   • busway with tap-offs

2. Map capacity end-to-end:

   • UPS → distribution → tap-off/whips → rack PDUs

3. Identify any single point of failure that defeats your intent (examples: one RPP feeding everything, one control power feed, one busway section that can’t be bypassed).

Output: distribution assumptions + headline ratings per segment (enough for a BOM and early procurement).

Done when: you can state which components must be maintainable without dropping the room below required capacity.

Step 5 — Convert IT load into cooling load (kW, BTU/hr, tons)

This is the kW to BTU/hr cooling load calculation you’ll use to translate an electrical rack plan into mechanical capacity.

At room level, IT electrical load is commonly treated as heat that must be removed (sensible load dominant in many IT rooms). For early sizing, you’re translating electrical kW into cooling capacity with clear adders.

Input: design IT kW, any meaningful “adders” (if applicable).

Action

1. Start with baseline: cooling sensible load (kW) ≈ IT load (kW).

2. Convert units for procurement:

   • BTU/hr = kW × 3,412

   • tons = BTU/hr ÷ 12,000

   • equivalently, tons ≈ kW ÷ 3.516

The equivalences are shown in CED Engineering’s Cooling Load Calculations and Principles, which notes 1 ton = 12,000 BTU/hr and that 12,000 BTU/hr ≈ 3.516 kW.

Reference: CED Engineering’s Cooling Load Calculations and Principles (12,000 BTU/hr per ton)

3. Add only the adders you can defend (examples):

   • UPS losses if the UPS is in the same room

   • in-room lighting/people if meaningful

   • envelope gains if the room is poorly isolated or exposed

Output: cooling load expressed in kW and tons.

Done when: you can reconcile the units without rounding errors that change equipment count.

Step 6 — Apply N+1 to cooling (and validate the “one unit down” case)

This step is the heart of N+1 cooling redundancy sizing: you’re proving the room still meets the cooling requirement with one unit unavailable.

Input: required cooling load, candidate unit sizes (CRAC/in-row/rear-door/liquid loop).

Action

1. Choose N units that can meet the design sensible load under credible worst conditions.

2. Add +1 unit/module.

3. Validate the same three states used for UPS:

   • Normal

   • One unit failed

   • One unit in maintenance

Output: cooling N and N+1 unit counts with a pass/fail matrix.

Done when: with one unit unavailable, remaining capacity still meets the design load.

Cooling N+1 pitfall

Unit-level N+1 does not automatically protect against shared headers, shared controls power, or single valve banks. Capture these as explicit “known non-redundant elements” if you’re accepting them.

For a clear general definition of N+1 as “N required + one additional component,” see Socomec’s data center redundancy definition (N+1).

Step 7 — Decide when simple calcs are enough vs when to escalate to CFD/commissioning tests

Simple capacity math is often sufficient when:

• racks are relatively uniform

• airflow path is clear

• containment is planned

• margins are explicit and conservative

Escalate when:

• rack heat maps are uneven or changing

• there are known hotspot risks (obstructions, short-circuit airflow paths)

• multiple cooling methods are combined

• the room is space-constrained (return path, ceiling height, no raised floor) and tolerances are tight

CFD doesn’t replace capacity sizing; it tests whether your airflow delivers the capacity where the heat is.

Step 8 — Worked example (20 racks, 12 kW typical / 15 kW design peak)

This example is intentionally simple so you can swap your numbers in.

Assumptions (replace with your site values)

• Racks: 20

• Typical peak: 12 kW/rack → 240 kW

• Design peak: 15 kW/rack → 300 kW

• Planning margin (example): 15%

• Power factor PF (example): 0.95

• UPS runtime target (example): 10 minutes

What you compute

• IT load totals (kW)

• UPS requirement (kW and kVA)

• N modules needed and whether N+1 holds under “1 down”

• Cooling capacity (kW and tons)

• Cooling N and N+1 unit count under “1 down”

Verification checks

• With one UPS module unavailable: “available UPS capacity ≥ required capacity”

• With one cooling unit unavailable: “available cooling ≥ required cooling”

Step 9 — Example BOM

Use this as a procurement checklist starter. Adjust for topology.

A) UPS block (static)

• UPS frame + power modules (quantity to satisfy N+1)

• Battery cabinets/strings (sized to runtime target at design load)

• Maintenance bypass cabinet

• Input/output breakers and protection

• Monitoring interface (status, alarms, metering)

B) Distribution (PDU/RPP/busway)

• PDU or RPP (as applicable)

• Busway trunk sections and tap boxes (if busway)

• Rack PDUs (A/B if dual-corded; metered/switched as required)

• Whips/cables, breakers, labeling

• Branch monitoring (optional but useful for capacity management)

C) Cooling (room boundary)

• Cooling units (CRAC / in-row / rear-door / liquid loop equipment as selected)

• Condensing units / dry coolers / CDUs (as applicable)

• Condensate management (if DX/CRAC)

• Leak detection (if liquid)

• Sensors and controls (supply/return temperature, pressure, airflow/DP; humidity where relevant)

D) Commissioning and spares

• Load bank test plan

• Critical spares list (fans, control boards, filters)

Copy/paste worksheet

Paste these tables into Excel, then replace example values with your site inputs.

Table 1 — Inputs

Table 2 — Calculations

Table 3 — Redundancy matrix (fill with your module/unit sizing)

Common failure modes that break N+1 in real rooms

• N+1 UPS, but a single RPP/PDU feeds all racks

• Control power is non-redundant (one PSU, one breaker, one UPS receptacle)

• Shared piping/header or a single valve bank creates a common-mode failure

• Monitoring/alarms depend on one network switch (loss of visibility during event)

• Busway tap-off ratings limit future growth even though “nameplate capacity” looks fine

Next steps

If you want, you can:

• Copy/paste the worksheet tables into Excel and swap in your site inputs.

• Ask for a commissioning checklist to validate the N+1 states (normal / one down / maintenance) during testing.
