Introduction
Legacy sites are being asked to do something they weren’t designed for: host AI/HPC racks with much higher heat loads in the same white space, on the same construction schedule, and often under tighter efficiency and compliance scrutiny.
A chilled water rear door heat exchanger (RDHx) is a retrofit approach that boosts rack-level cooling capacity without changing servers. You replace (or mount onto) the rack’s rear door with a liquid-to-air coil so exhaust air is cooled before it mixes into the room. In practice, a chilled water rear door heat exchanger retrofit is one of the fastest ways to add headroom for AI/HPC loads in legacy white space.
Outcomes to expect when the system is engineered and commissioned correctly:
Lower risk of hotspot events and inlet-temperature excursions
Incremental deployment (rack-by-rack / row-by-row)
Potential PUE improvements from reduced room mixing/fan penalties and warmer-water operation (site-dependent)
Key Takeaway: RDHx captures heat to water at the rack boundary, letting legacy rooms support higher densities without a full cooling rebuild.
How RDHx works
Air-assisted liquid cooling at the rack
RDHx is often called air-assisted liquid cooling because servers remain air-cooled, but much of the heat ends up in a water loop.
The heat path looks like this:
Server components heat the air stream.

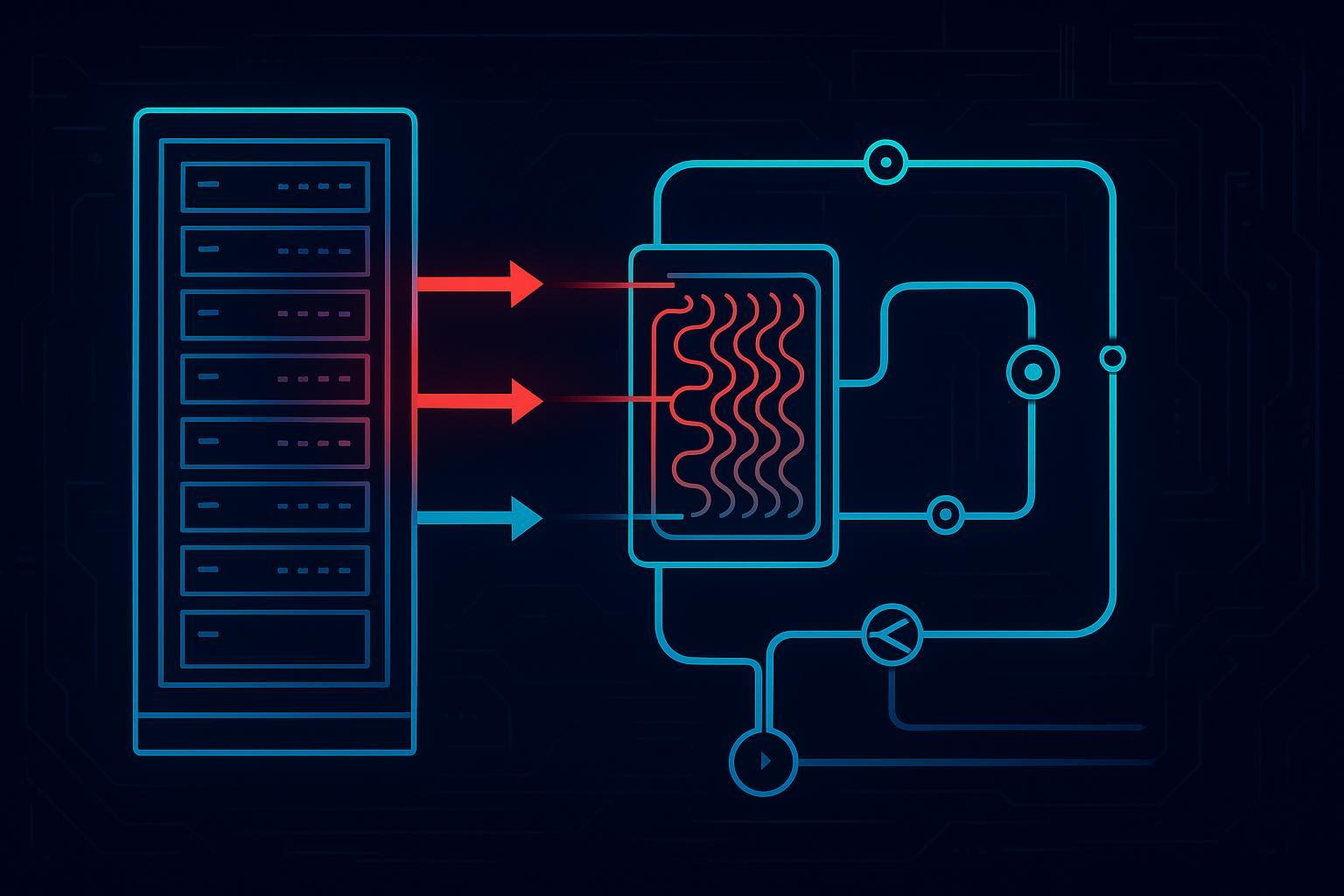

Exhaust air passes through the rear-door coil.
Heat transfers into a circulating liquid loop.
The facility rejects that heat via chilled water or another heat-rejection source.
For legacy sites, a chilled water rear door heat exchanger retrofit can improve stability by reducing hot-aisle heat and buying thermal margin for mixed-density rows.
Passive vs active rear doors
“Passive” and “active” are airflow-control choices:
Passive RDHx relies on server fans to push air through the coil. Fewer powered components, but performance depends on the rack airflow path and the pressure drop of the door.
Active RDHx adds fans on the door to control airflow and pressure. This is often more predictable for mixed-density rows and fast load swings, at the cost of fan power and additional controls.
A useful baseline explainer for the differences (and typical monitoring approaches) is Vertiv’s article on how RDHx supports high-density rack cooling.
Control, CDU, and dew point basics
For chilled-water retrofits, condensation control is the first engineering gate.
Condensation forms if the coil surface (or any uninsulated valve/pipe) drops to or below the room dew point.
Because sensors have error and conditions change, you need a buffer, not a razor-thin setpoint.
ASHRAE TC 9.9 explicitly recommends keeping facility water temperatures at least 2°C (3.6°F) above room dew point and integrating telemetry/valve controls to prevent condensation, per the ASHRAE TC 9.9 「Water‑Cooled Servers」 white paper.
Where does a CDU fit?
A coolant distribution unit (CDU) typically creates a controlled secondary loop (pumps + heat exchanger + filtration + sensors/controls).
It helps stabilize temperature, flow, and alarms at a row/pod level—often easier to operate than running rack devices directly on facility water.
If you want a reference point for how CDUs are positioned in an integrated solution set, see Coolnetpower’s overview of Coolant Distribution Units (CDUs).
Retrofit planning for legacy sites
Hydraulics, piping, and clearances
Most retrofit risk is “unsexy”: routing, isolation, and serviceability. For a chilled water rear door heat exchanger retrofit, these details usually determine schedule and operational risk more than the door hardware.
Plan these early:
Clearances: rear door depth and the ability to access hoses, quick disconnects, and valves.

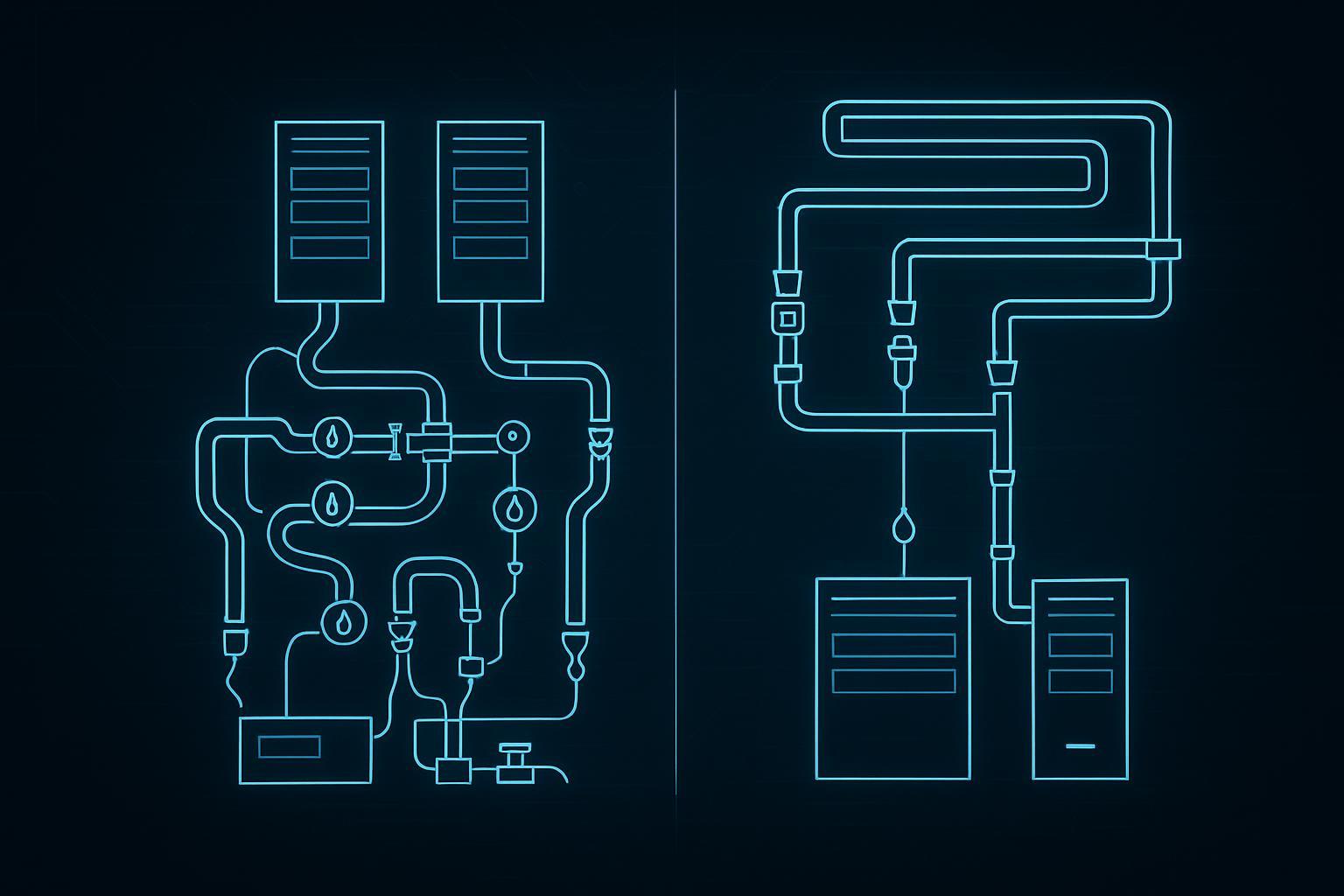

Routing: underfloor vs overhead runs, with an explicit decision on inspection access and leak-risk management.
Isolation: the system must support maintenance without draining an entire hall (valves, bypasses, drain/purge points).
Water-side constraints: temperature band, pressure limits, and water quality assumptions (and where a CDU will decouple these from facility water).
Controls, sensing, and BMS integration
Treat RDHx as an operational system, not a mechanical accessory. Minimum instrumentation and integration typically includes:
Room dew point (multiple sensor pairs)
Supply/return temperatures (secondary loop and facility loop)
Flow and differential pressure (filters, stuck valves, air entrainment)
Leak detection at low points and connection zones
Pump status and failover state
Then define what happens on excursions:
dew point margin approaching
pump failure
leak detected
loss of comms to BMS
If you don’t define trip vs advisory logic and escalation ownership up front, the retrofit will look good in a pilot and become painful at scale.
Commissioning, safety, and SOPs
Commissioning should prove three things: (1) it cools, (2) it won’t condense, and (3) operators can respond safely.
LBNL/DOE lists practical RDHx commissioning checks such as validating temperature sensors point-to-point, minimizing airflow leakage/recirculation, measuring coolant flow and inlet/outlet temperatures, confirming inlet coolant temperature above dew point, leak checks, and testing new control sequences in 「Data Center Rack Cooling with Rear‑door Heat Exchanger」.
Turn that into site-specific SOPs:
fill / drain / purge
isolation workflow and LOTO boundaries
leak response and automatic shutoff behavior
alarm drills (dew point excursion, pump failover)
Coolnetpower provides integrated retrofit engineering and commissioning support—from design integration to an operations-ready handover.
Performance, energy, and ROI
Capacity envelope and density targets
Instead of starting with “kW per rack,” define the envelope for your chilled water rear door heat exchanger retrofit:
target inlet temperature band under worst-case load
worst-case room dew point (seasonal)
fraction of heat you need to capture to water to keep the room stable
Legacy outcomes depend on the weakest link—often airflow hygiene (blanking panels, containment integrity) and control discipline, not the door itself.
PUE, economizer hours, and water temps
Energy impact is highly site-specific, but the mechanism is consistent:
If you can operate at warmer water temperatures while staying above dew point, you may reduce chiller lift and increase waterside economizer hours.
If RDHx reduces room heat and recirculation, you may be able to relax room airflow demands.
Treat claims as conditional and measure them in your pilot: rack heat captured to water, fan power added at the doors, and any plant-side change.
Cost, risk, and timeline considerations
Retrofits usually succeed on schedule because you can deploy incrementally. The hidden costs tend to be:
piping labor and routing constraints
controls engineering and BMS integration
leak detection/containment and training
commissioning time to validate dew point safety and failover behavior
A simple ROI model that ignores risk controls is misleading; most of the value is avoided downtime and avoiding a rushed room-level rebuild.
Comparisons and migration paths
RDHx vs CRAH/CRAC upgrades
Room-level upgrades are often the first step when densities remain moderate and airflow management is the primary issue. RDHx becomes compelling when room air improvements hit diminishing returns—especially in mixed-density environments where hotspots are local and persistent.
RDHx vs direct-to-chip and immersion
RDHx keeps servers air-cooled. Direct-to-chip and immersion move more of the thermal problem into liquid handling and change service models.
A practical migration mindset:
Use RDHx to stabilize high-density rows and build liquid-ops muscle (loops, sensors, SOPs).
Reserve direct-to-chip for the highest sustained densities.
For an overview of what changes when you move beyond air-assisted approaches, Coolnetpower’s page on cold plate liquid cooling is a useful orientation.
Hybrid strategies for AI/HPC roadmaps
Most legacy roadmaps are hybrid by necessity:
RDHx on transitional high-density rows
improved containment and airflow hygiene across the room
direct-to-chip for the densest GPU clusters
When you want one page to align stakeholders on phased approaches, Coolnetpower’s article on hybrid cooling paths for scaling AI racks provides additional context.
Conclusion
Key selection criteria and red flags:
Dew point control is explicit (sensors + buffer + interlocks). Red flag: no defined margin or trip logic.
Routing is maintainable (reachable isolation/drain points). Red flag: valves and hoses that can’t be accessed under alarm conditions.
Commissioning is measurable (acceptance criteria, not just “it seems cool”). Red flag: no test plan for dew point safety and failover.
Next steps to scope and de-risk your pilot:
Pick a small number of racks, instrument heavily, and validate dew point safety under worst-case seasonal conditions.
Build an operator-ready commissioning and alarm-response checklist.
A good chilled water rear door heat exchanger retrofit pilot ends with a reusable package: drawings, controls points list, FAT/SAT checklist, and SOPs that make scaling predictable.
For a neutral product reference point while you scope, see the Coolnetpower chilled-water rear door heat exchanger page and request a pilot scoping checklist and commissioning template.
