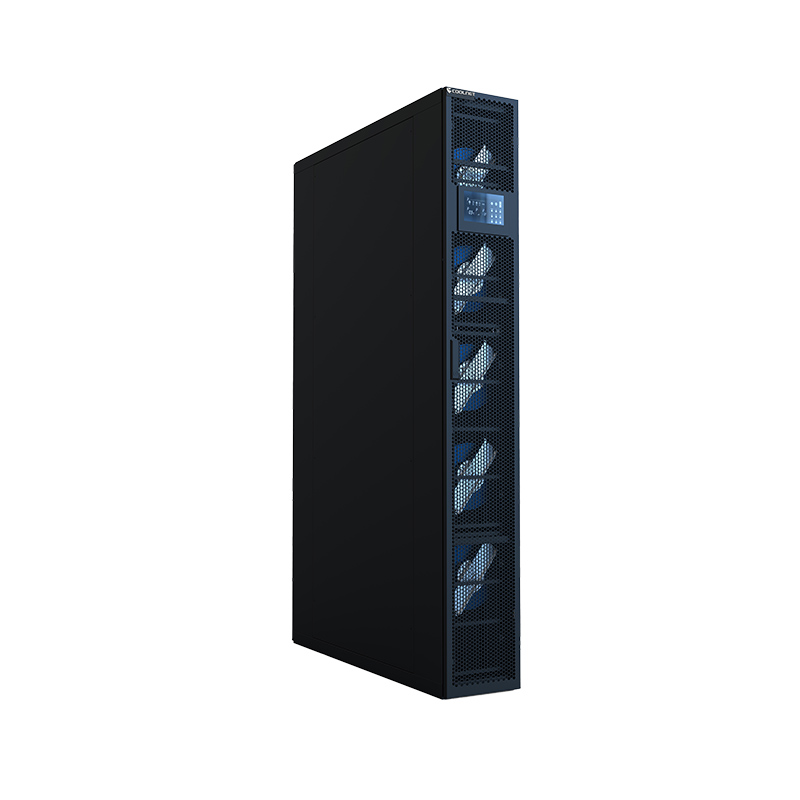

In-row cooling

Cool-Row 300

13.2–26.7 kW

A narrow in-row unit that brings cooling close to the IT rack.

Technology / installation: 300 mm wide
Local display: 7-inch color touchscreen
Group control: Up to 32 units

Contact sales View brochure

Back to products

Features

High Precision, High Reliability

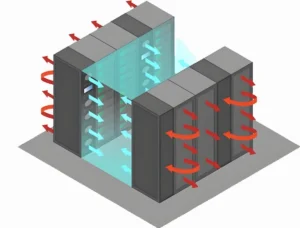

Comprehensive Airflow Organization--Supports horizontal or side airflow, Compatible with hot/cold aisle containment
24/7/365 Continuous Operationdesigned for non-stop operation, compliant with Tier III/IV data center standard.

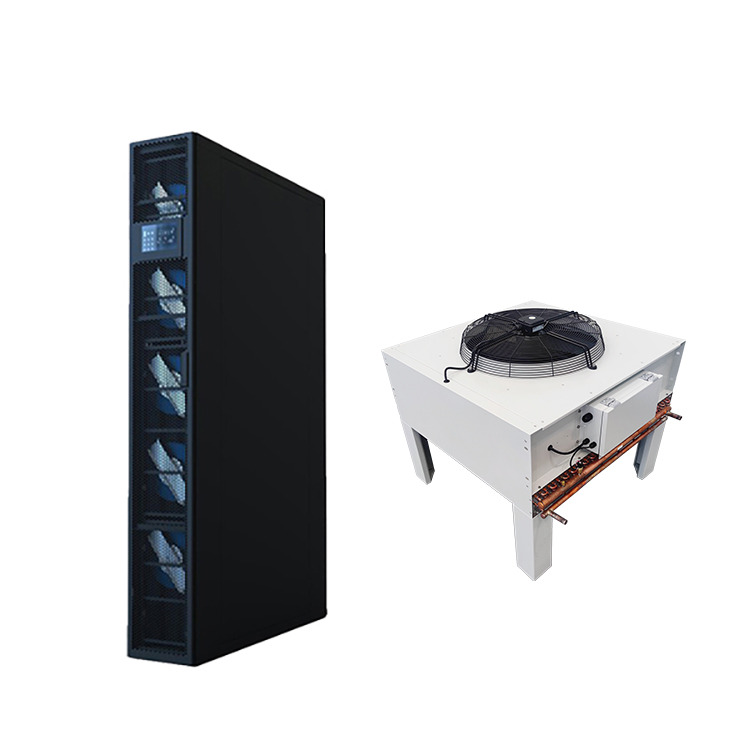

Flexible Cooling SolutionsAir-cooled, chilled water, Indirect Free Cooling with Refrigerant Pump Technology for minimizing the energy consumption of the Inrow cooling system.

Energy-Optimized Climate Control

Closer cooling to IT Rack-Horizontal/side airflow directly cools IT equipment, improving cooling efficiency by 20-30%.
Air-cooled, chilled water, Indirect Free Cooling with Refrigerant Pump Technology for minimizing the energy consumption of the Inrow cooling system.
Dual Energy Efficiency Optimization: EC fan + inverter compressor reduce annual energy consumption by 25%.

Advanced Intelligent Control +Touch screen

7" Color Touchscreen – Multi-level password access, self-diagnostic system,Russian/English/Chinese interface.
Group Control (Up to 32 Units) – Energy efficiency management, scheduled rotation, auto-failover.
Comprehensive Monitoring & Protection- Real-time operating status of all components, 500 historical alarm records
Standard RS485 communication interface,-optional Ethernet port, supporting TCP/IP, SNMP, and other protocols.

Highly Customized Options

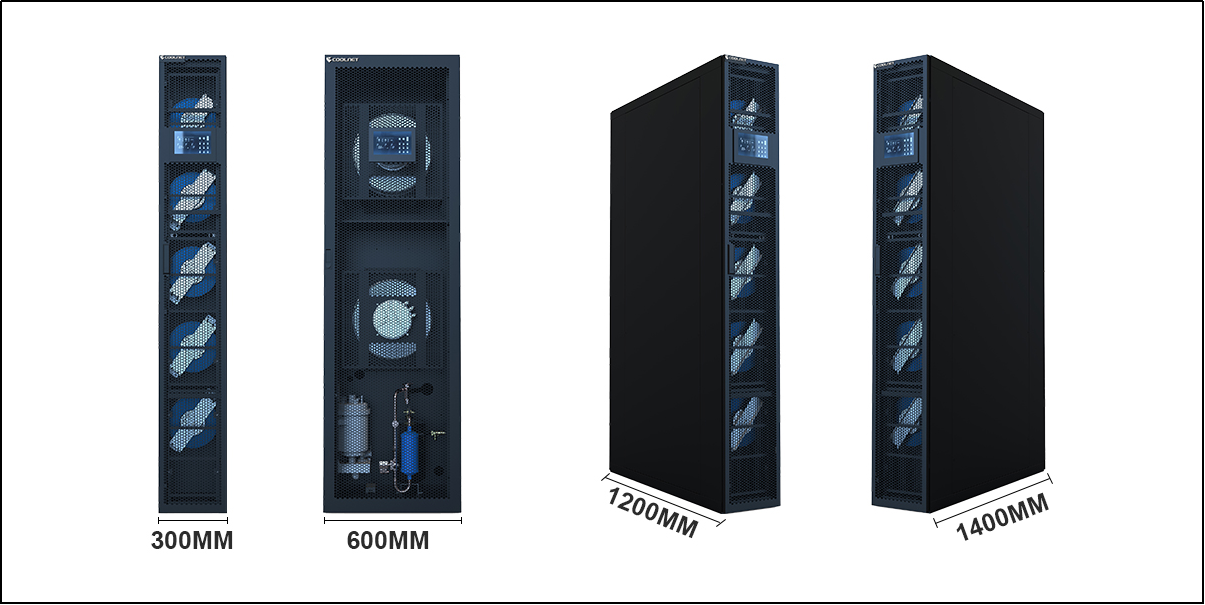

Available in two widths and two depths, air flow front and side discharge, Allows us to provide a customized fit for different data center configurations. Suitable for racks from any manufacturers, you can also easily expand or reconfigure your cooling infrastructure without disrupting the existing setup.

Key Components


EC Fans	Inverter Compressor	Electronic Expansion Valve	Humidifier
Best in class design and reliability. Highest efficiency EC Fan system. Speed adjustable 0%-100%.	Stable temperature control per heating load by adjusting compressor output.Reducing energy cost and improve compressor working life.	Expansion valve adopts advanced thermal expansion valves with strong reliability and stability and can precisely control the supply of refrigerant.	An internationally advanced electrode steam humidification system under which the amount of humidification and water inflow and outflow are all controlled by computer.
