Cabinets & pods

Edge data center

Integrated cabinets with power, cooling, monitoring and fire protection for branch offices and local IT.

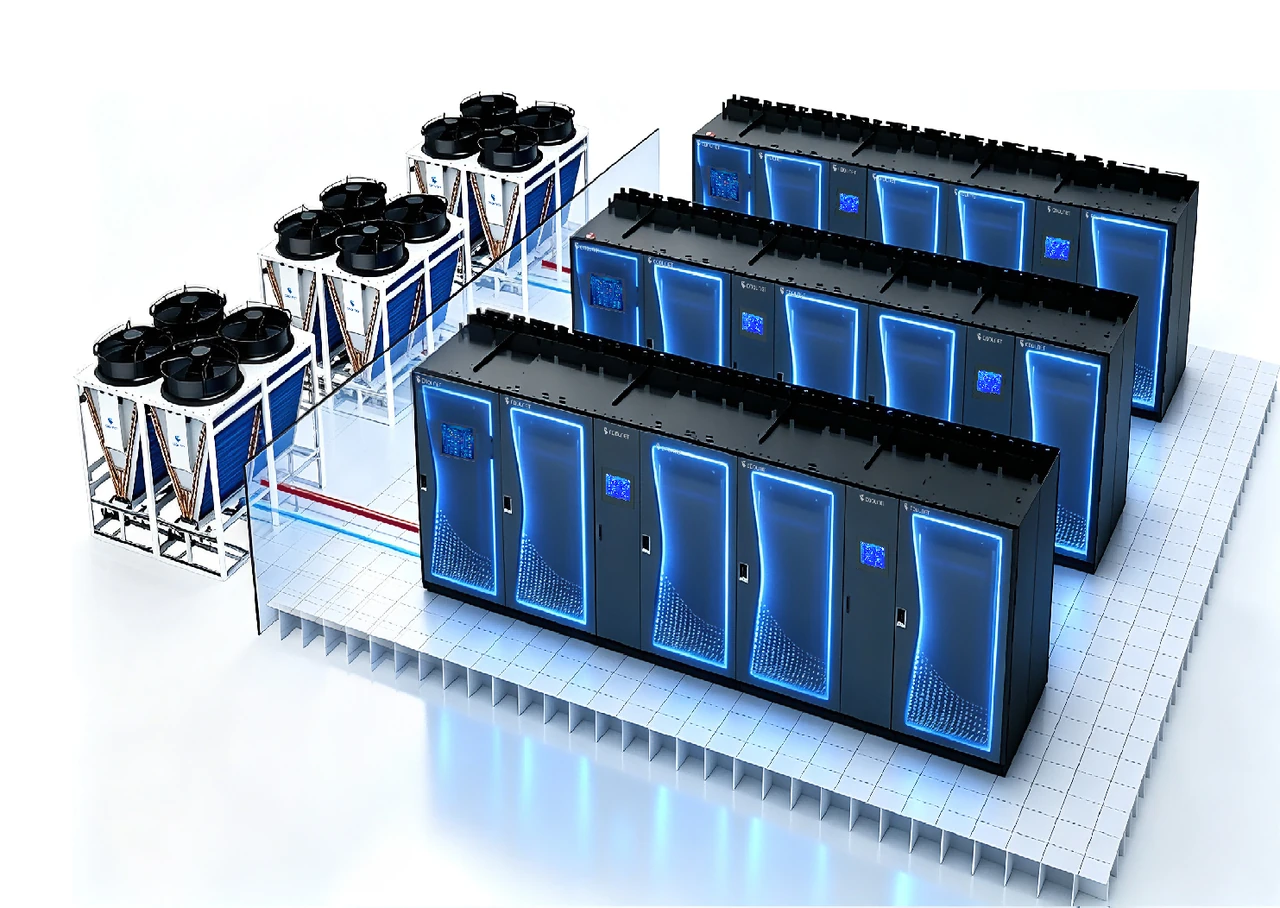

Integrated cabinet row connected to outdoor refrigerant-pump cooling units — System illustration

Cooling approach: Refrigerant-pump in-row cooling
Deployment: Single or connected cabinets
Solution planning range: Up to 15 kW per cabinet

Overview

A complete cooling path for local IT

A single-row micro data center integrates cabinets, power distribution, precision cooling, monitoring and fire protection. Start with the local IT load and the space available for equipment and access.

Integrated cabinet row

Bring the infrastructure together

Coordinate rack space, power, monitoring and fire protection within the compact cabinet layout.

Cooling beside the load

Use in-row cooling

Position the cooling units beside the cabinets and plan the connections to the outdoor equipment.

Operating conditions

Plan free-cooling operation

Refrigerant-pump free cooling depends on outdoor conditions and the required indoor temperature.

Reference configuration

A five-cabinet edge installation

Reference equipment for a five-cabinet installation. Its 10 kW cabinet load is below the 15 kW solution limit.

In this example

Per cabinet: 10 kW
IT cabinets: 5
Total heat load: 50 kW

Scroll the table to see all columns

Equipment in this reference configuration
Equipment	Model	Quantity	Duty / standby
In-row air conditioning	CLA050F	2	1 + 1

Duty + standby: 2 + 1 means two duty units and one standby unit.

This example is not a fixed bill of materials. Final equipment selection, capacity and redundancy depend on the IT requirements and site operating conditions.

Technology

Inside the system

Five systems in one compact installation

MetaRack is a single-row micro data center designed for edge computing and branch sites. Its modular enclosure brings together five infrastructure functions.
