Rack & immersion cooling

Fan Wall Cooling

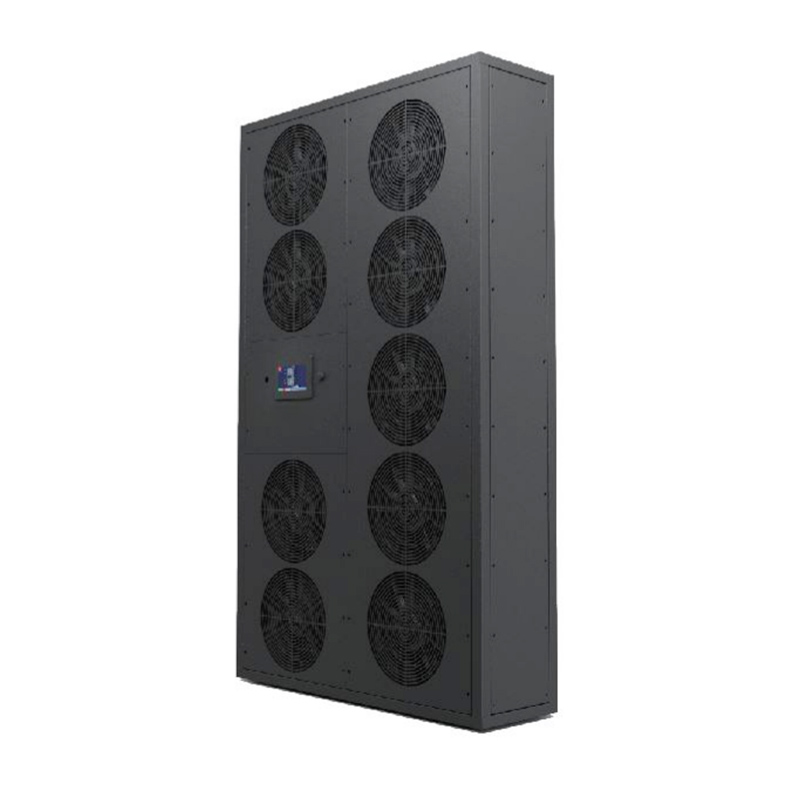

Modular fan wall

Integrated heat exchangers and fans provide modular cooling with variable fan and water-valve control.

Features

Mini Fan-Wall easy to install and deploy.
Adjustable fan speed and water valve opening according to demand, allowing for dynamic cooling capacity adjustment.

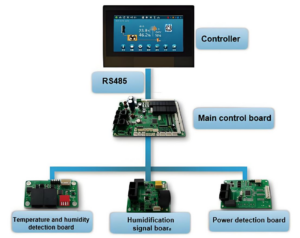

Intelligent control program for real-time monitoring and control to ensure the safe and stable operation of the unit.
Expert-level fault diagnostics for easy maintenance and operation.
Supports Modbus RTU, with an optional TCP/lP configuration.

Mini Fan-Wall integrated the heat exchangers and fans,available in a variety of forms.
Customized design to meet the requirementsModular produce, rapid on-site assembly.
The depth no more than 200mm, uses Dc small fans, which arecompact and easy to maintain.
High Quality Control Components.

7-inch TFT true color touch screen, friendly human-machine interface, easy to operate.
With the function of automatic start-up upon incoming call, the start-up time is adjustable from 0 to 300 seconds.
Supports USB flash drive for convenient local maintenance.
Supports Ethernet interface for convenient remote monitoring and maintenance.
Powerful group control function, four group control modes to adapt to different load conditions.
Modular design, flexible system configuration, and convenient function expansion.
The communication interface uses RJ45 terminal for convenient on-site wiring.

Product brochures and technical documentation.

PDF

Product brochure · PDF
