Integrated power

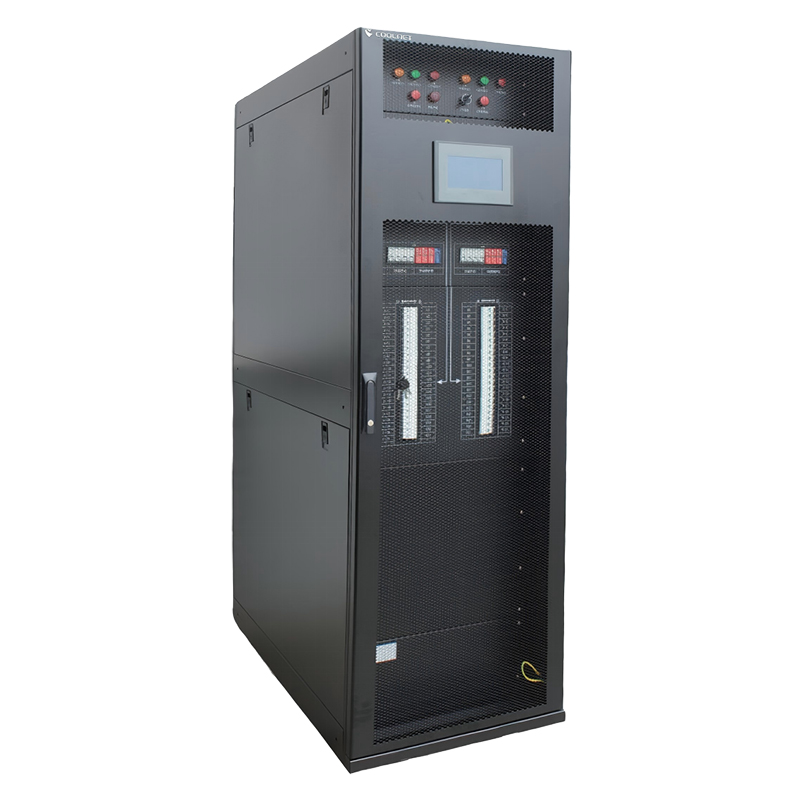

Intelligent Power Cabinet
Up to 180 kVA
Integrated power supply and distribution with replaceable modules and branch monitoring.
- Technology / installation
- UPS + distribution
- Power module
- 30 kVA / 30 kW
- Module height
- 2U
Features

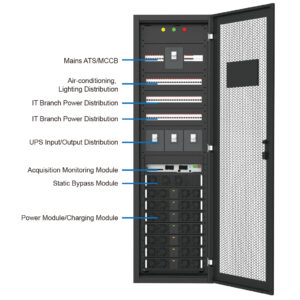

Extreme Power Density
Featuring industry-leading power density, the system supports a maximum of 180kVA integrated UPS power supply and distribution.
It includes a built-in 30kVA/30kW module with a highly compact 2U height. The system capacity allows for phased deployment, while both power and bypass modules can be quickly hot-swapped for effortless maintenance.
By integrating the UPS, input/output cabinets, and precision distribution into a single cabinet, it saves 68% of floor space and reduces installation time by over 55%.
Intelligent Safety & High Efficiency
Intelligent Safety Monitoring
Enables smart detection of power distribution branches and comprehensive visualization of power supply links. It offers a "one screen, one system" integrated management experience for monitoring power distribution, UPS, and battery information in real-time.
Green, Energy-Saving, and Efficient
The system achieves an outstanding operational efficiency of up to 96%, significantly minimizing energy consumption and providing a pure green power supply for data center loads.

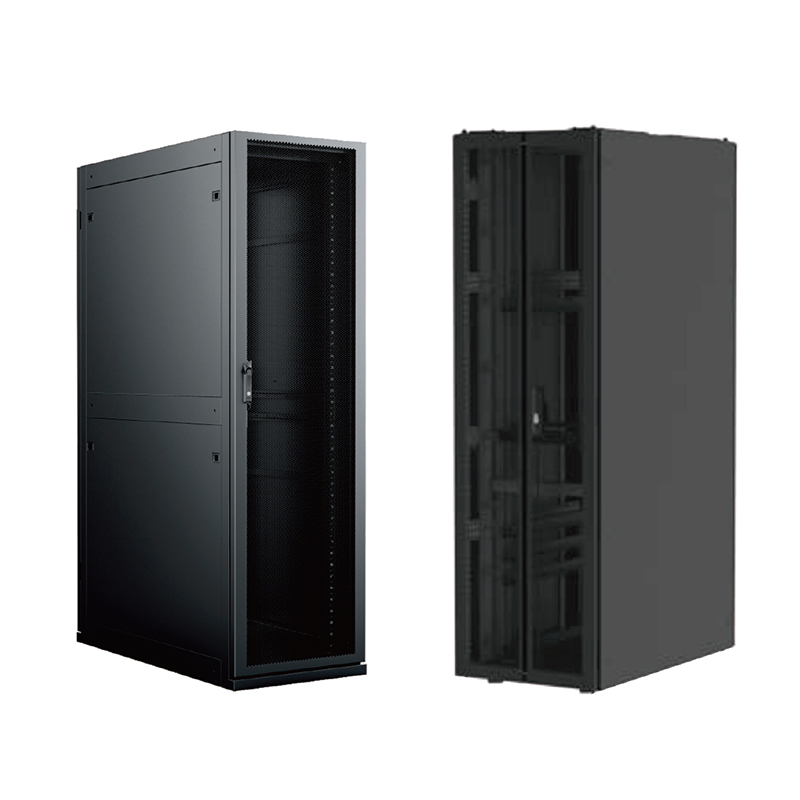

Advanced Cabinet System
This multi-functional cabinet is expertly developed for data centers of all sizes (large, medium, and small). It boasts a sturdy, elegant assembly structure with an exceptional load-bearing capacity. By integrating three major management solutions—power, cable, and heat dissipation—it serves as a robust infrastructure. Capable of housing user equipment, power distribution units, UPS, battery boxes, and monitoring systems all in one enclosure, it drastically reduces the required footprint in the computer room.
Robust Structure
Constructed with a 10-fold profile welded frame, ensuring high strength and an impressive static load capacity of 1800KG.
Optimized Ventilation
Equipped with a flat, high-density hexagonal mesh door that delivers a 75% ventilation rate. It enhances heat dissipation while meeting mechanical protection requirements.
Flexible Assembly
Features an integrated assembly structure. The equipment installation U-pillars can be adjusted front and back, making it seamless to install other power distribution modules.
Versatile Dimensions
Available in various sizes to fit your specific needs: Widths of 600/800mm, depths ranging from 600 to 1200mm, and optional heights of 42U, 47U, or 52U.
Rich Accessories
Supports a comprehensive range of options: PDUs, blind panels, shelves, L-shaped guide rails, cable management boards, troughs, ventilation fans, electronic access control, and ambient lights.
Superior Durability
The cabinet surface undergoes rigorous degreasing, phosphating, and electrostatic spraying processes to guarantee durability and strong resistance to acid and alkali corrosion.
