Online UPS

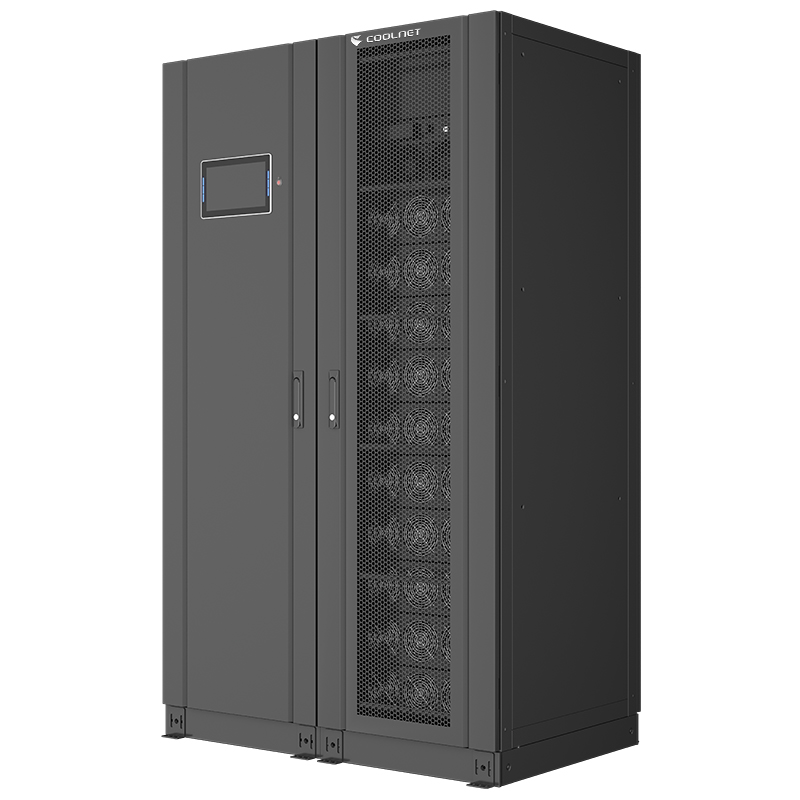

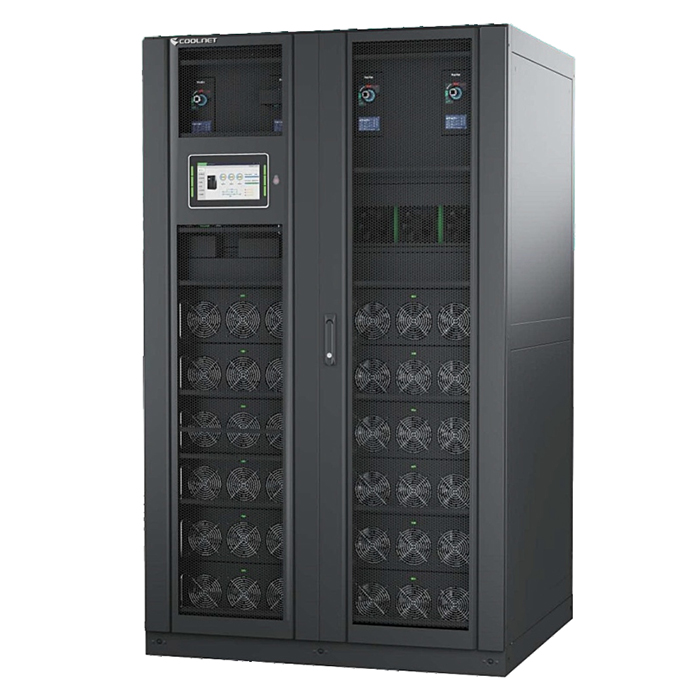

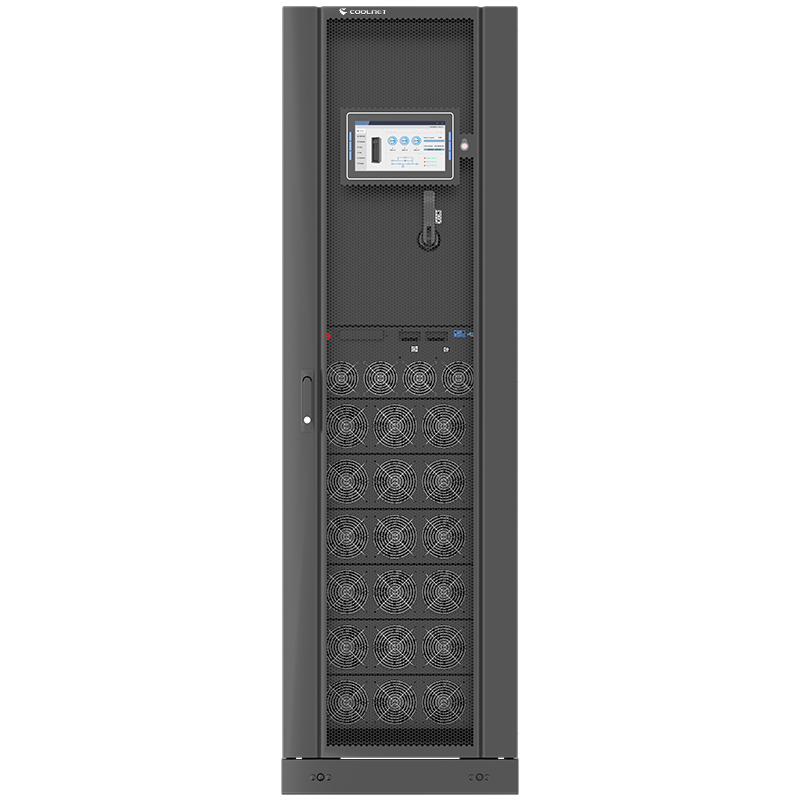

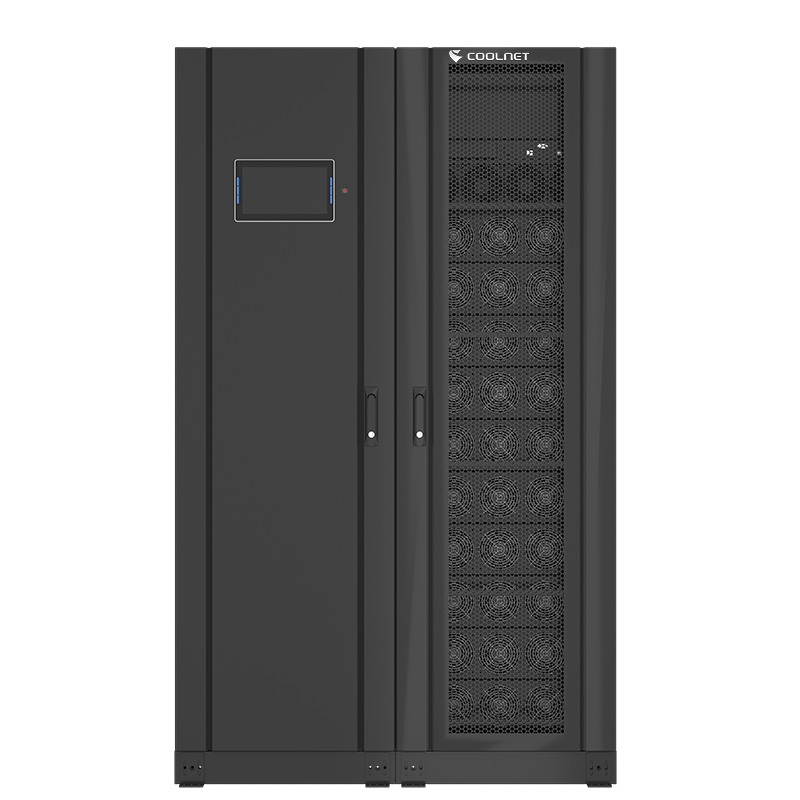

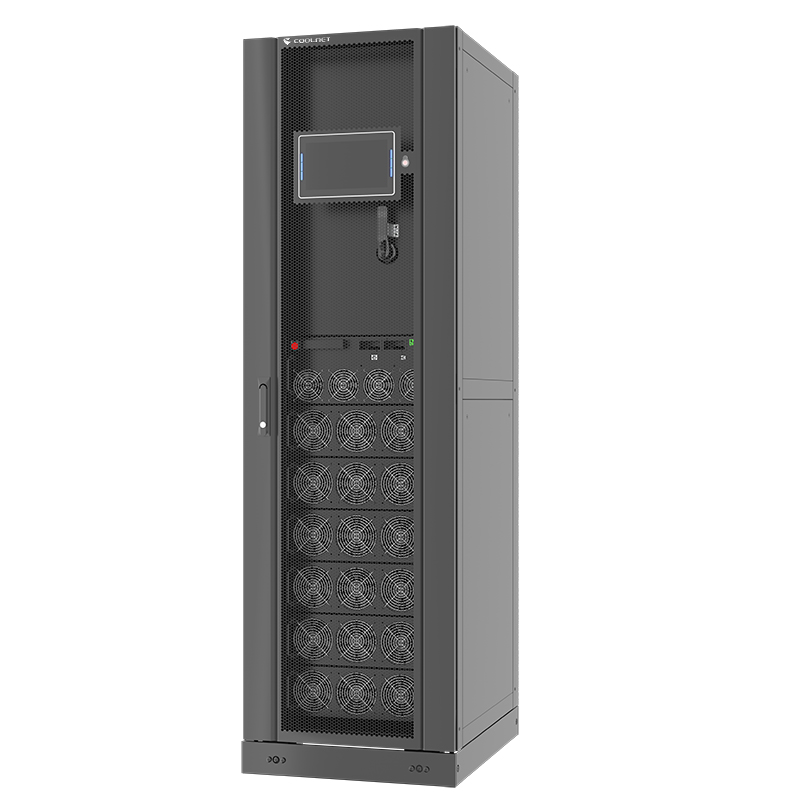

PGH Tower 300–600

300–600 kVA

High-capacity online UPS with digital battery management and flexible cable entry.

Technology / installation: Tower-mounted

Contact sales View brochure

Back to products

Features

Advantages

Extremely wide input voltage and frequency range

Wide range of options

Intelligent system self-diagnosis

DSP digital control technology

The UPS will switch to battery mode when themains power is normal Zero time,which caneffectively ensure the safety and reliability of the instrument.

Dust-proof grid,SNMP network communication card,lightning protection module,battery temperature compensator,cell phone SMS alarm.

Extensive fault logging,large history storage space.suit 50Hz/60Hz.

All power conversion links such as rectification,inverter,charging,and discharge are digitally controlled.

Main Feature

Support 380/400/415V,50/60Hz power grid system, to provide theideal power supply quality and load protection
High performance and efficiency,input PF>0.99,THDi<3%,efficiency>96%
Full DSP control,flexible and robust digital control for rectifier,inverter and battery management.
Wide range of voltage and frequency.adapt to different grid and generator input.
Friendly human-machine interface,equipped with a large LCD touch screen and control keyboard,rich in information.
All fans in the system are designed with a few spare parts,which greatly improves the reliability of the system.
Intelligent battery management programme,support for the configuration of large-capacity charging module;
Top/bottom cable entry,flexible for different field installation.

All Types of Uninterrupted Power Supply Systems

The groundbreaking improvements in power supply reliability, availability, and maintainability of critical equipment have enabled us to offer customers comprehensive and personalized complete solutions for electronics power supply.
