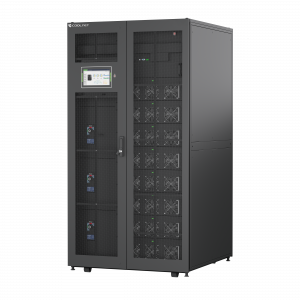

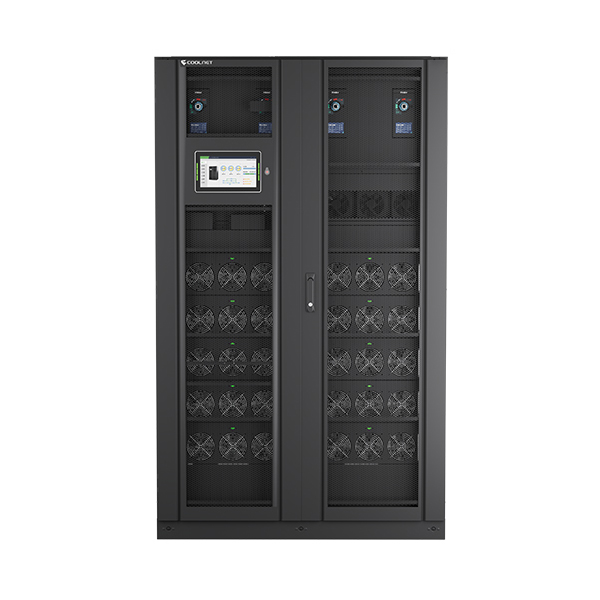

Modular UPS

PGM Tower 100–1200

100–1,200 kVA

High-capacity modular UPS with digital power control and a 10-inch local display.

Technology / installation: Tower-mounted
Models in the detailed sheet: PGM 600/100TTL, 800/100TTL, 1000/100TTL, 1200/100TTL
Rated output of listed models: 600 / 800 / 1,000 / 1,200 kVA; output power factor 1
Nominal supply: 380 / 400 / 415 V AC, 50 / 60 Hz
Display: 10-inch LCD touchscreen

Contact sales View brochure

Back to products

Features

Advantages

Superior Overload Capacity

User-friendly Design

Load Power Factor Of 0.9

Grid Friendly

Superior overload capacity to make the power supply system more reliable.

LCD liquid crystal display,which can display theworking status and parameter information of UPS inreal time,facilitating user management of UPS;

Adapts to the characteristics of most currentelectrical equipment and increases the loadcarrying capacity of the machine.

Energy saving green power with high input power factor and low THDi.

Main Feature

DSP full digital control, rectifier, inverter, charging, dischargingAll power conversion links are digitally controlled;
Device-level protection for extreme reliability and greater environmental adaptability;
Extra large color LCD touch screen-10 inch LCD touch screen with colorful graphic display, easy to operate and friendly human-machine interface.
Intelligent system self-diagnostic program, rich fault records,large-capacity history record storage space;
Maximum capacity support 1.8MW, the best choice for ultra-large data centers.

All Types of Uninterrupted Power Supply Systems

The groundbreaking improvements in power supply reliability, availability, and maintainability of critical equipment have enabled us to offer customers comprehensive and personalized complete solutions for electronics power supply.
