Project overview
Coolnet supplied a free-cooling system for Telepoint's data center in Bulgaria. The project combines precision air-conditioning units with external DC200 dry coolers.
Project configuration
- Precision cooling
- 4 free-cooling units
- Heat rejection

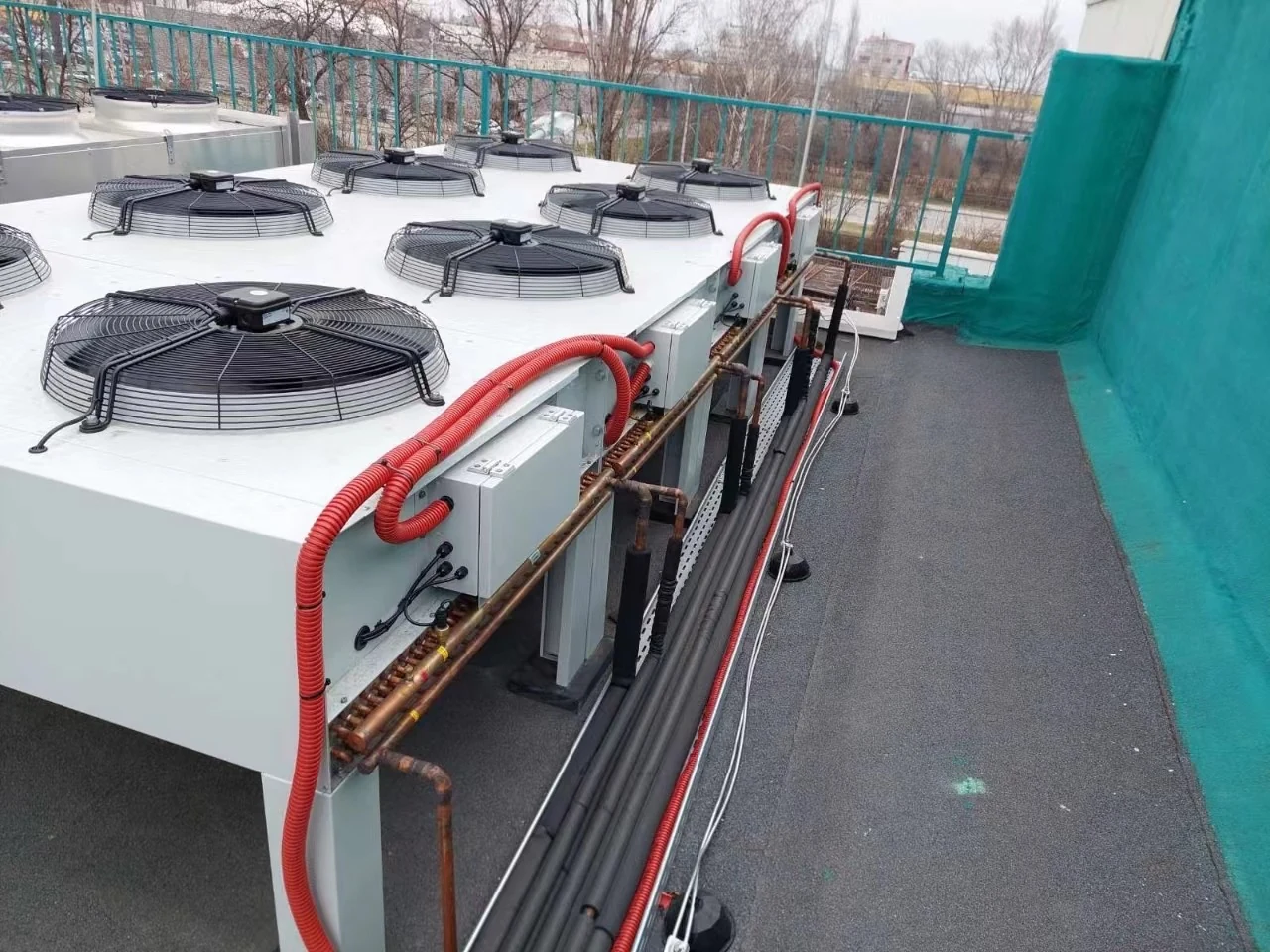

- 4 DC200 dry coolers
- Operating modes
- DX and glycol-water cooling
From selection to operation
Coolnet supported equipment selection, site assessment and installation recommendations. The units are installed and operating.
Cooling design conditions
At 24°C and 50% relative humidity, each unit is rated at 75.5 kW total and 68.9 kW sensible capacity in DX mode, or 80.8 kW total and 70.7 kW sensible capacity in glycol-water mode.
