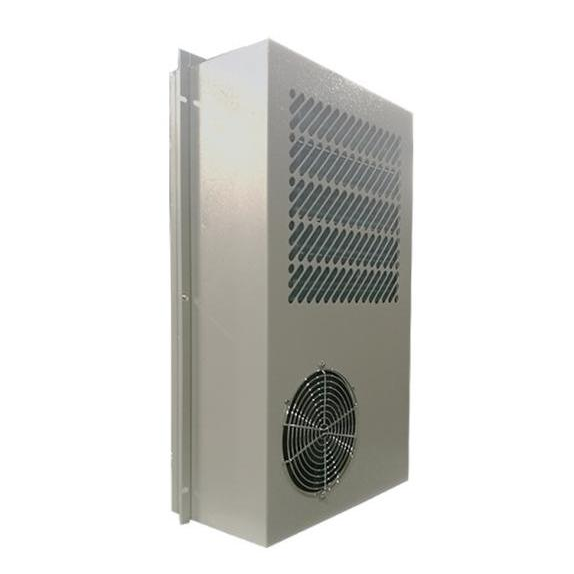

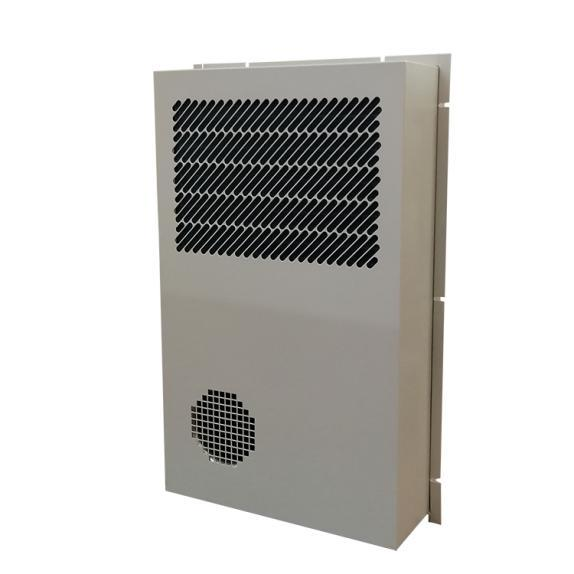

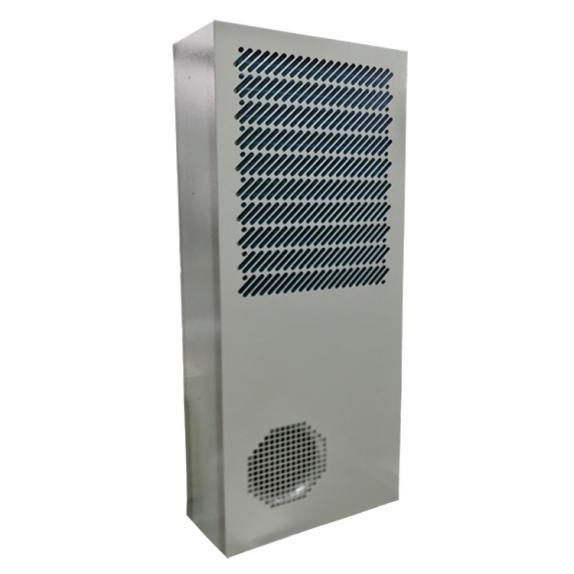

CN-OAC Cabinet Cooling

• 1.Good design, stable structure and easy maintenance.

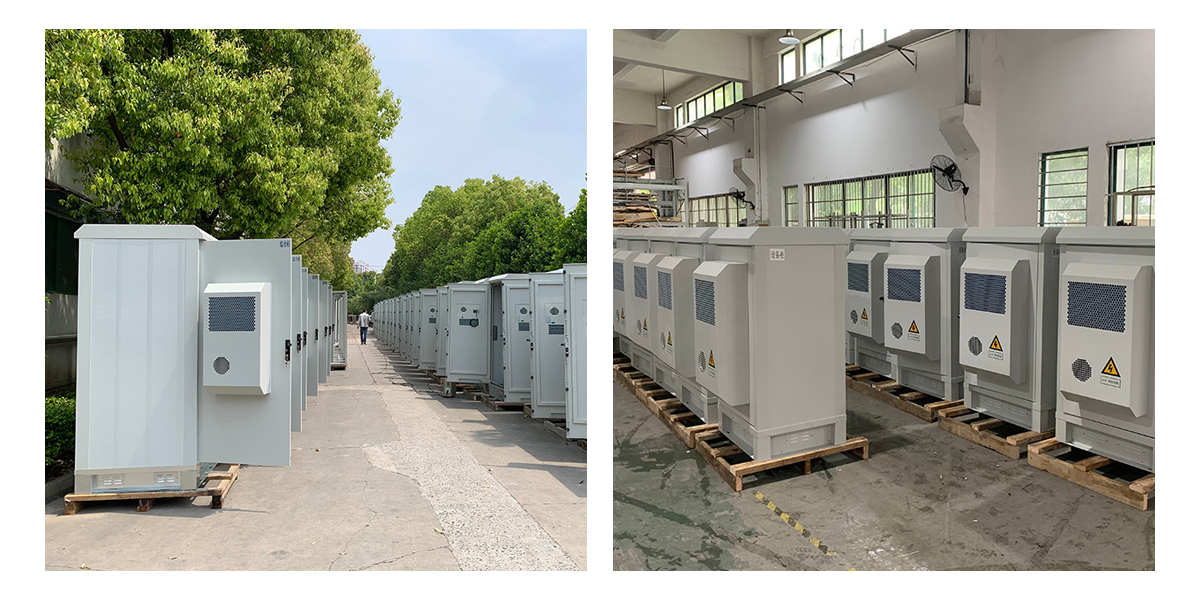

• 2.Widely used for outdoor telecommunication cabinets,battery cabinets, electric cabinets and industry control cabinets etc.
• 3.Door mounted, side mounted and top mountedavailable.
• 4.The protective level is IP55, can protect cabinet frommoisture, dust and water. It can be installed indoor and outdoor, run at high ambient temperature of 55℃.

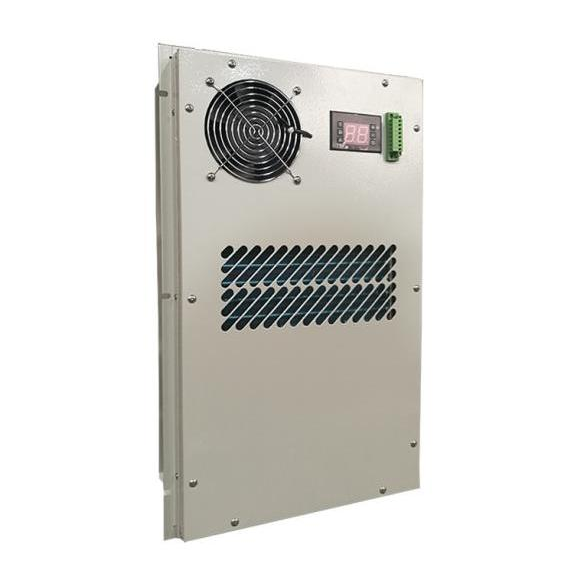

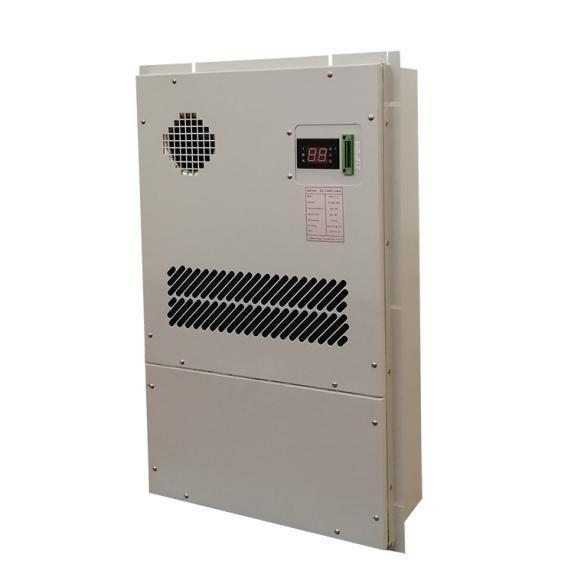

• 5.Digital temperature controller and high precision of temperature control.
• 6.The main components have CE certifications, which can meet EU RoHS requirements.

Characteristics

• • Mounting: door, side and top mounted available.
  • Digital temperature controller and high precision of temperature control.
  • CE certified, which can meet EU RoHS requirements.
    • Compact structure, reasonable design and easy maintenance.

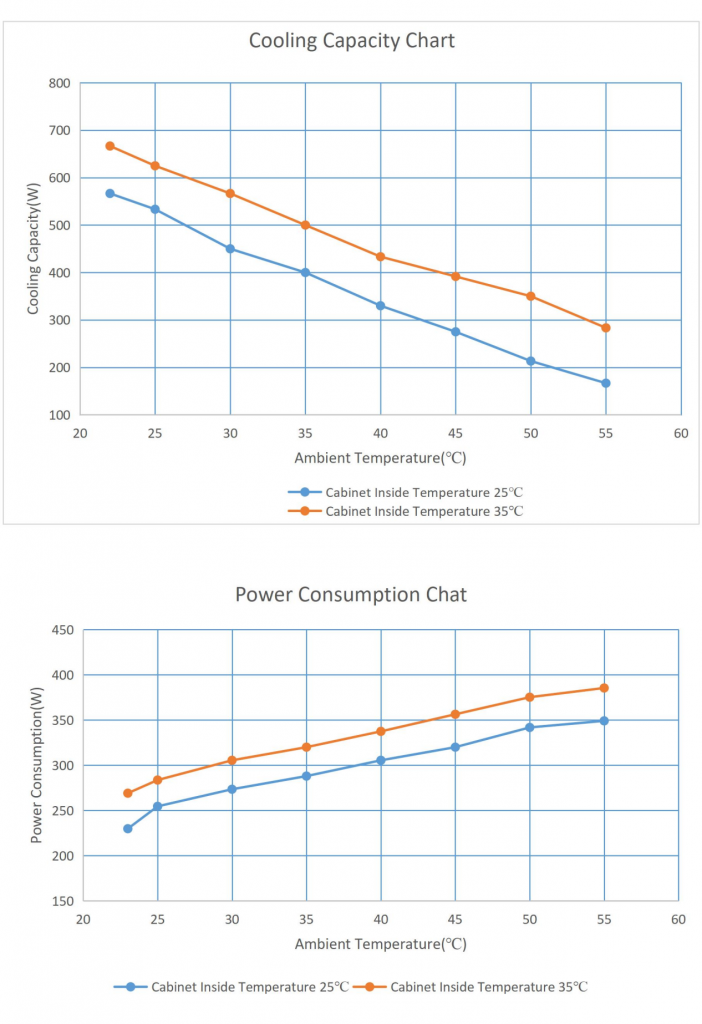

    • Cooling capacity ranges from 300W to 5000W.
    • Widely used for outdoor telecom cabinets, battery cabinets, electric cabinets and industry control cabinets etc.
    • The protective level is IP55, can run at high ambient environment 55°C .
    • Voltage range: AC220v, 50Hz/60Hz; AC110v, 60Hz; DC-48V.

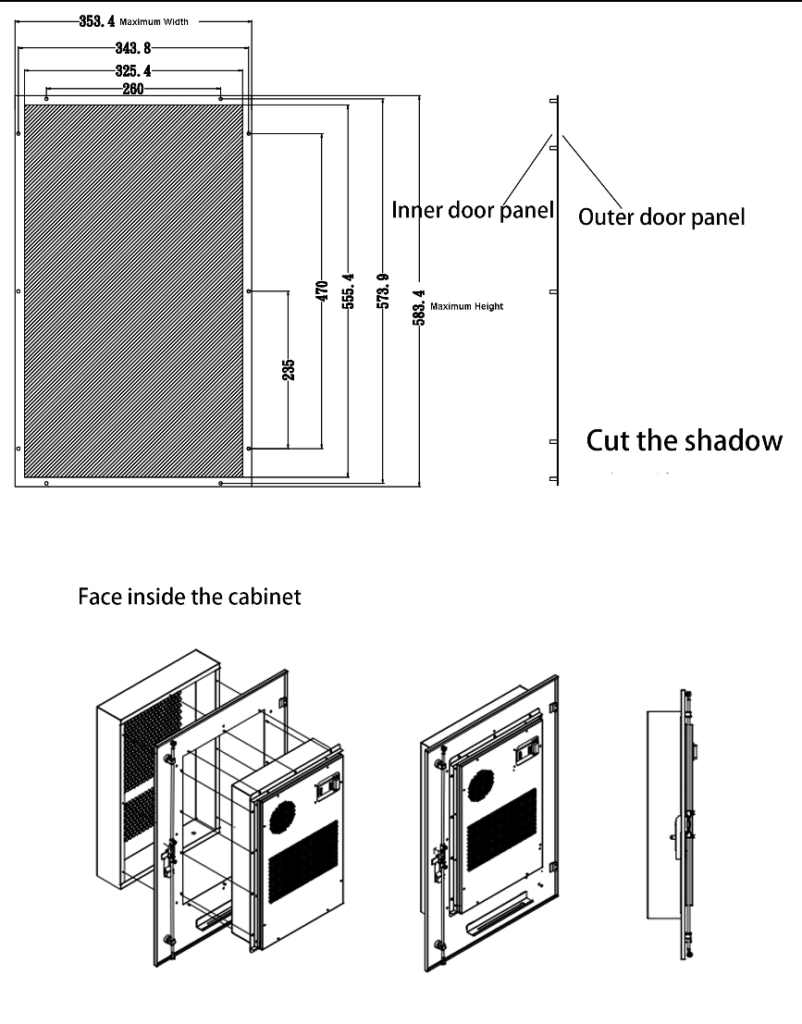

Installation Drawin

Dimension & Install Steps:

• 1.Measure the required dimension on the pending installed cabinet door.
• 2.Cutted the dimension and holes for the air condtioner.
• 3.Installation with screws,adding the gasket and glue for waterproof.
